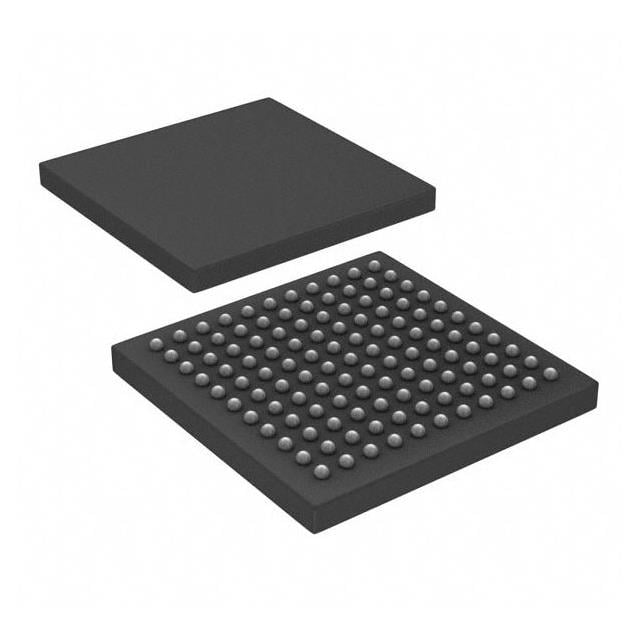

CYUSB3014-BZXI Infineon USB Controller | 121-FBGA(10X10) | USB 3.0, 32-bit ARM926EJ-S

Product Overview

The CYUSB3014-BZXI is a high-performance USB 3.0 peripheral controller from Infineon (formerly Cypress), part of the EZ-USB FX3 family. It integrates a 32-bit ARM926EJ-S microprocessor running at up to 200 MHz, providing a flexible and powerful solution for applications requiring high-speed data transfer. The device is housed in a compact 121-ball FBGA package (10x10 mm) and supports USB SuperSpeed (5 Gbps) with 32 endpoints. It features a fully configurable architecture with GPIF II interface for connecting to external processors, FPGAs, or image sensors. The CYUSB3014-BZXI is ideal for applications such as industrial cameras, medical imaging, test equipment, and data acquisition systems.

Detailed Technical Specifications

Key Features

• USB 3.0 SuperSpeed (5 Gbps) with backward compatibility to USB 2.0/1.1
• 32-bit ARM926EJ-S processor for on-chip data processing
• 512 KB embedded SRAM for firmware and data buffering
• GPIF II interface for glueless connection to external devices
• 32 configurable endpoints for flexible data streaming
• Industrial temperature range (-40°C to +85°C)
• Small footprint 121-FBGA package (10x10 mm)
• Comprehensive software support including SDK and example codes

Target Applications

• Industrial cameras and machine vision systems (e.g., Basler ace series)
• Medical imaging devices (e.g., ultrasound probes, endoscopes)
• Test and measurement equipment (e.g., oscilloscopes, logic analyzers)
• Data acquisition systems (e.g., NI DAQ modules)
• 5G base station control and monitoring interfaces
• Automotive dashboard and infotainment systems
• FPGA-based prototyping and development platforms

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CYUSB3014-BZXI. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CYUSB3014-BZXI 是英飛凌（原賽普拉斯）推出的高性能 USB 3.0 週邊控制器，屬於 EZ-USB FX3 系列。它整合了一個 32 位元 ARM926EJ-S 微處理器，運行頻率最高可達 200 MHz，為需要高速數據傳輸的應用提供了靈活且強大的解決方案。該器件採用緊湊的 121 球 FBGA 封裝（10x10 mm），支援 USB SuperSpeed（5 Gbps）並具有 32 個端點。它配備了完全可配置的 GPIF II 接口，用於連接外部處理器、FPGA 或圖像傳感器。CYUSB3014-BZXI 非常適合工業相機、醫療成像、測試設備和數據採集系統等應用。

詳細技術參數

核心特性

• USB 3.0 SuperSpeed（5 Gbps），向下相容 USB 2.0/1.1
• 32 位元 ARM926EJ-S 處理器，支援片上數據處理
• 512 KB 嵌入式 SRAM，用於韌體和數據緩衝
• GPIF II 接口，可無縫連接外部設備
• 32 個可配置端點，實現靈活的數據串流
• 工業級溫度範圍（-40°C 至 +85°C）
• 小巧的 121-FBGA 封裝（10x10 mm）
• 全面的軟體支援，包括 SDK 和範例代碼

典型應用場景

• 工業相機和機器視覺系統（例如 Basler ace 系列）
• 醫療成像設備（例如超聲探頭、內窺鏡）
• 測試與測量設備（例如示波器、邏輯分析儀）
• 數據採集系統（例如 NI DAQ 模塊）
• 5G 基站控制與監控接口
• 汽車儀表板與信息娛樂系統
• FPGA 原型設計與開發平台

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CYUSB3014-BZXI 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
