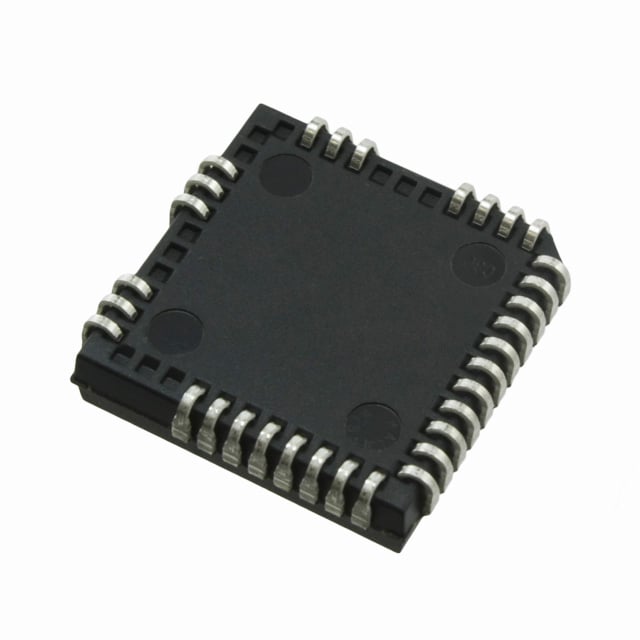

IR2136JTRPBF Infineon Gate Driver | 44-PLCC, 32 leads (16.58x16.58) | 600V, 3-Phase

Product Overview

The IR2136JTRPBF is a high-voltage, high-speed power MOSFET and IGBT gate driver from Infineon Technologies. It is designed for three-phase applications and integrates three independent half-bridge drivers in a single 44-PLCC package with 32 leads (16.58x16.58 mm). The device features a 600V bootstrap operation, cross-conduction prevention logic, and programmable deadtime. It is optimized for driving N-channel power MOSFETs and IGBTs in inverter and motor control systems.

Detailed Technical Specifications

Key Features

• Floating channel designed for bootstrap operation up to 600V
• Integrated cross-conduction prevention logic
• Programmable deadtime to prevent shoot-through
• Under-voltage lockout (UVLO) for both VCC and VBS
• Matched propagation delays for all channels
• High noise immunity: dV/dt immunity >50V/ns
• Lead-free and RoHS compliant

Target Applications

• Three-phase motor drives for industrial automation (e.g., Siemens S7-1500 servo drives)
• Uninterruptible power supplies (UPS) for data centers (e.g., APC Smart-UPS)
• Air conditioning and refrigeration compressors (e.g., Daikin inverter AC)
• Electric vehicle (EV) traction inverters (e.g., Tesla Model 3 drive unit)
• Power tools and home appliances (e.g., Dyson vacuum cleaner motor)
