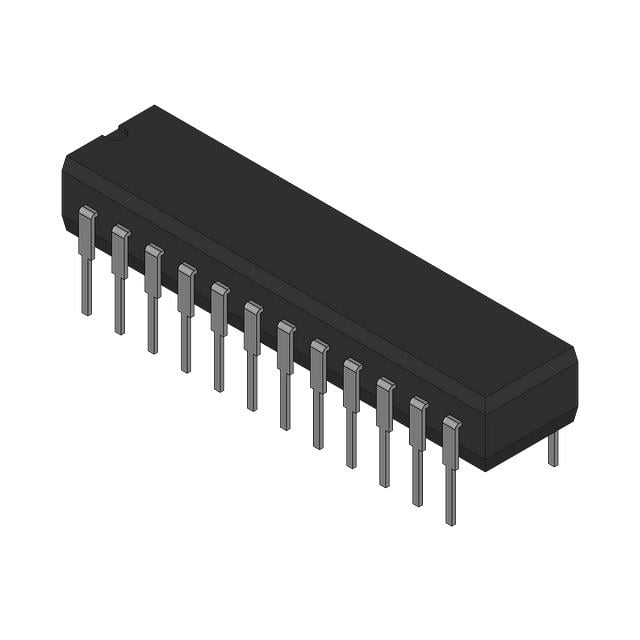

IRSM505-065DA Infineon CIPOS Nano IPM | 23-DIP | 500V, 5A

Product Overview

The IRSM505-065DA is a highly integrated, 3-phase inverter power module from Infineon's CIPOS Nano series. It combines a 3-phase gate driver IC with six N-channel power MOSFETs in a compact 23-DIP package. This module is designed for low-power motor drive applications, offering a complete inverter solution with minimal external components. The device features a 500V breakdown voltage and 5A continuous current rating, making it suitable for a wide range of applications including home appliances, industrial drives, and power tools.

Detailed Technical Specifications

Key Features

• Integrated 3-phase gate driver and power MOSFETs in a single package
• Low RDS(on) for high efficiency
• Built-in bootstrap diodes
• Under-voltage lockout (UVLO) for all channels
• Over-current shutdown (OCP)
• Thermal shutdown (TSD)
• Cross-conduction prevention
• Matched propagation delays
• RoHS compliant

Target Applications

• Home appliances: washing machines, refrigerators, air conditioners, vacuum cleaners
• Industrial drives: fans, pumps, compressors, conveyor belts
• Power tools: drills, saws, grinders
• Automotive: electric power steering, HVAC blowers
• 5G base station cooling fans
• Smart grid: smart meters, power distribution

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IRSM505-065DA. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
