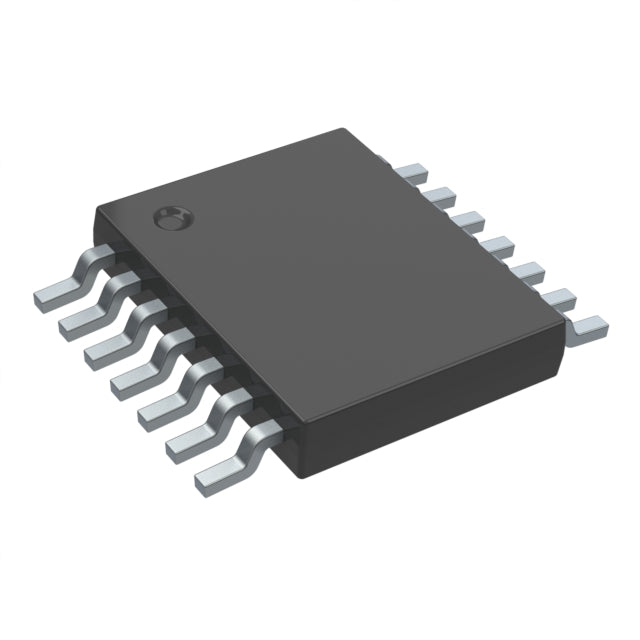

ITS6080SEPDXUMA1 Infineon Power Switch | PG-TSDSO-14 | 70mOhm, 6A

Product Overview

The ITS6080SEPDXUMA1 is a high-side power switch from Infineon's PROFET™+2 family, designed for automotive and industrial applications requiring robust protection and diagnostic capabilities. Housed in a compact PG-TSDSO-14 package, this device integrates a vertical power MOSFET with charge pump, current sensing, and comprehensive protection features. It provides a single-channel output capable of driving resistive, inductive, and capacitive loads up to 6A continuous current. The device operates over a wide input voltage range of 3.1V to 28V, making it suitable for 12V and 24V board nets. With its low on-resistance of 70mΩ (typical at 25°C), it minimizes power dissipation and supports high-efficiency designs.

Detailed Technical Specifications

Key Features

• Low on-resistance: 70mΩ typical at 25°C
• Wide input voltage range: 3.1V to 28V
• Integrated charge pump for high-side drive
• Comprehensive diagnostic functions: open load, short circuit, overtemperature, overcurrent
• Protection: overcurrent, overtemperature, undervoltage lockout, reverse battery (external resistor)
• Very low standby current (< 2μA)
• Green product (RoHS compliant)
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive body control modules (e.g., lighting, wipers, window lifts)
• 5G base station power distribution
• Industrial PLC output modules
• Dashboard and infotainment systems
• Battery management systems
• Heater and fan control in HVAC systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ITS6080SEPDXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ITS6080SEPDXUMA1 是英飛凌 PROFET™+2 系列的高側電源開關，專為需要強大保護和診斷功能的汽車及工業應用而設計。該器件採用緊湊的 PG-TSDSO-14 封裝，集成了垂直功率 MOSFET、電荷泵、電流檢測和全面的保護功能。它提供單通道輸出，能夠驅動高達 6A 連續電流的電阻性、電感性和電容性負載。器件工作電壓範圍寬（3.1V 至 28V），適用於 12V 和 24V 電網。憑藉其低導通電阻（25°C 時典型值 70mΩ），可最大限度地降低功耗並支持高效率設計。

詳細技術參數

核心特性

• 低導通電阻：25°C 時典型值 70mΩ
• 寬輸入電壓範圍：3.1V 至 28V
• 集成電荷泵，用於高側驅動
• 全面的診斷功能：開路、短路、過溫、過流
• 保護：過流、過溫、欠壓鎖定、反極性（外部電阻）
• 極低待機電流（< 2μA）
• 綠色產品（符合 RoHS）
• 通過 AEC-Q100 認證，適用於汽車應用

典型應用場景

• 汽車車身控制模塊（例如照明、雨刮、車窗升降）
• 5G 基站電源分配
• 工業 PLC 輸出模塊
• 儀表板和信息娛樂系統
• 電池管理系統
• HVAC 系統中的加熱器和風扇控制

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ITS6080SEPDXUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
