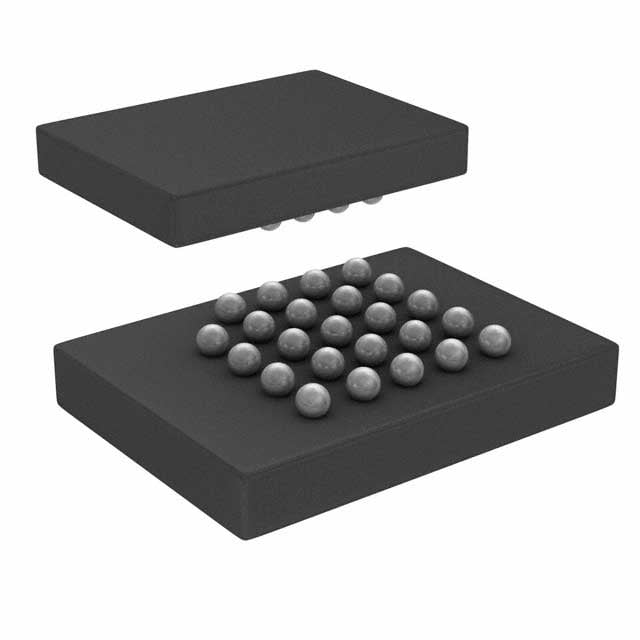

S25FL128SAGBHIA10 Infineon NOR Flash | 24-BGA(8x6) | 128Mb, 3V, 133MHz

Product Overview

The S25FL128SAGBHIA10 is a 128Mb (16MB) NOR Flash memory device from Infineon, designed for high-performance embedded applications. It operates at a voltage range of 2.7V to 3.6V and supports SPI and Dual/Quad SPI interfaces, enabling fast read and write operations. The device is housed in a compact 24-ball BGA (8x6mm) package, making it suitable for space-constrained designs. With a maximum clock frequency of 133MHz, it delivers high throughput for code execution and data storage.

Detailed Technical Specifications

Key Features

• High-performance SPI interface with up to 133MHz clock rate
• Dual/Quad SPI modes for enhanced read throughput
• Low power consumption: active read current 25mA (typical), standby 50µA
• Uniform 64KB blocks and 4KB sectors for flexible erase granularity
• Advanced security features: OTP area, hardware write protection
• JEDEC standard SFDP register for auto-detection
• RoHS compliant and halogen-free

Target Applications

• 5G base stations: code shadowing and configuration storage
• Automotive dashboard: firmware storage for infotainment systems
• Industrial IoT: data logging and firmware updates
• Networking equipment: boot code and parameter storage
• Smart meters: firmware and calibration data

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL128SAGBHIA10. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25FL128SAGBHIA10 是英飛凌推出的128Mb（16MB）NOR Flash存儲器件，專為高性能嵌入式應用設計。工作電壓範圍為2.7V至3.6V，支持SPI、雙SPI和四SPI接口，可實現快速讀寫操作。器件採用緊湊的24球BGA（8x6mm）封裝，適合空間受限的設計。最高時鐘頻率133MHz，為代碼執行和數據存儲提供高吞吐量。

詳細技術參數

核心特性

• 高性能SPI接口，最高133MHz時鐘
• 雙/四SPI模式提升讀取吞吐量
• 低功耗：讀取電流25mA（典型），待機50µA
• 統一的64KB塊和4KB扇區，靈活擦除粒度
• 高級安全特性：OTP區域、硬件寫保護
• JEDEC標準SFDP寄存器，支持自動檢測
• 符合RoHS標準，無滷素

典型應用場景

• 5G基站：代碼影子化和配置存儲
• 汽車儀表盤：信息娛樂系統固件存儲
• 工業物聯網：數據記錄和固件更新
• 網絡設備：啟動代碼和參數存儲
• 智能電錶：固件和校準數據

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL128SAGBHIA10 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
