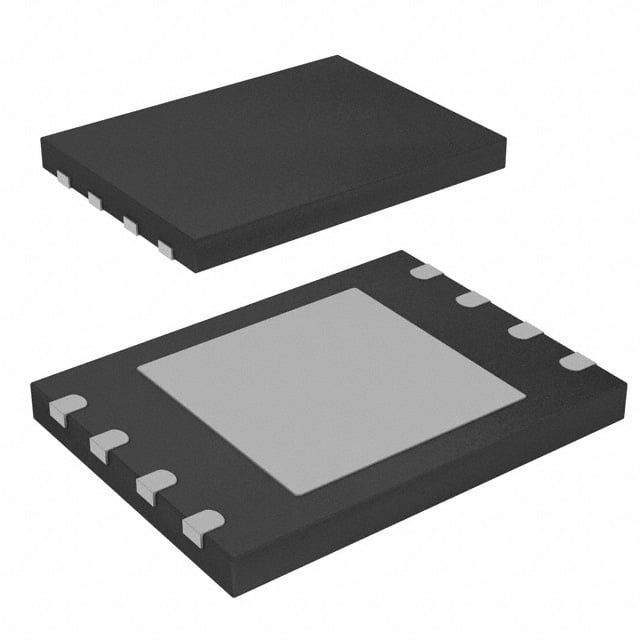

S25FL128SAGNFI010 Infineon NOR Flash | 8-WSON(6x8) | 128Mb, 133MHz

Product Overview

The S25FL128SAGNFI010 is a 128Mb (16MB) NOR Flash memory device from Infineon, designed for high-performance embedded applications. It features a 133MHz SPI interface and operates over a wide voltage range of 2.7V to 3.6V. The device is housed in an 8-pin WSON package (6x8mm), offering a compact footprint for space-constrained designs. With advanced security features and high reliability, it is ideal for code storage, data logging, and firmware updates in industrial, automotive, and networking applications.

Detailed Technical Specifications

Key Features

• High-speed SPI interface up to 133 MHz
• Uniform 4 KB, 32 KB, and 64 KB erase blocks
• Advanced security: OTP, password protection, and hardware write protection
• Low power consumption: active read current 25 mA (typ), standby 50 µA (typ)
• Supports Multi-I/O SPI (Single, Dual, Quad) for enhanced throughput
• JEDEC standard compliant

Target Applications

• 5G base stations: firmware storage for remote radio units
• Automotive dashboard: code storage for infotainment systems
• Industrial PLCs: program memory for control logic
• Networking routers: boot code and configuration storage
• Smart meters: data logging and firmware updates

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL128SAGNFI010. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25FL128SAGNFI010 是英飛凌推出的 128Mb（16MB）NOR Flash 存儲器，專為高性能嵌入式應用設計。它支持 133MHz SPI 接口，工作電壓範圍為 2.7V 至 3.6V。器件採用 8 引腳 WSON 封裝（6x8mm），佔用空間小，適合空間受限的設計。憑藉先進的安全特性和高可靠性，該產品非常適合工業、汽車和網絡應用中的代碼存儲、數據記錄和固件更新。

詳細技術參數

核心特性

• 高速 SPI 接口，最高 133 MHz
• 統一的 4 KB、32 KB 和 64 KB 擦除塊
• 高級安全功能：OTP、密碼保護和硬件寫保護
• 低功耗：主動讀取電流 25 mA（典型），待機 50 µA（典型）
• 支持多 I/O SPI（單、雙、四線）以提高吞吐量
• 符合 JEDEC 標準

典型應用場景

• 5G 基站：遠程射頻單元的固件存儲
• 汽車儀表盤：信息娛樂系統的代碼存儲
• 工業 PLC：控制邏輯的程序存儲器
• 網絡路由器：啟動代碼和配置存儲
• 智能電錶：數據記錄和固件更新

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL128SAGNFI010 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
