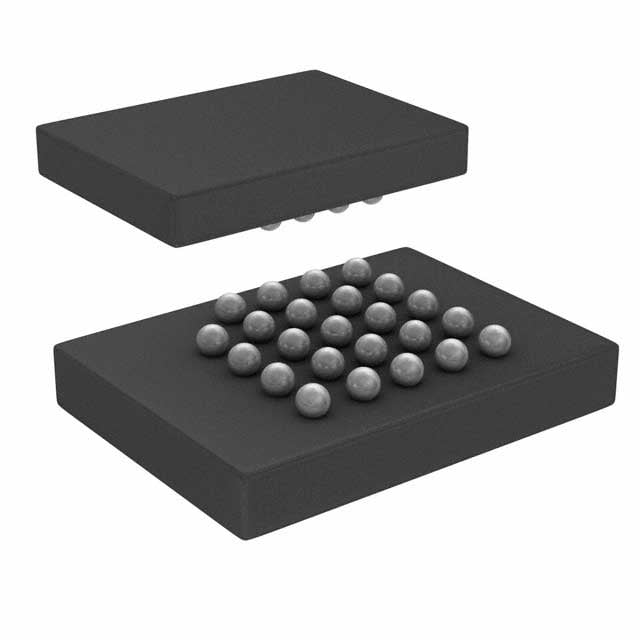

S25FL256LAGBHV020 Infineon NOR Flash | 24-BGA(8x6) | 256Mb, 133MHz, SPI

Product Overview

The Infineon S25FL256LAGBHV020 is a 256Mb (32MB) NOR Flash memory device in a compact 24-ball BGA (8x6mm) package. It features a high-speed SPI interface with dual/quad I/O support, operating at up to 133MHz. Designed for reliable code storage and data logging, it offers low power consumption and a wide temperature range (-40°C to +85°C). Ideal for automotive, industrial, and networking applications.

Detailed Technical Specifications

Key Features

• High-speed SPI with quad I/O for fast read/write
• Low power consumption: 25 mA active read, 5 μA standby
• Uniform 4KB sectors for flexible erase
• Advanced security features: OTP, lock-down, and password protection
• JEDEC standard SFDP for easy integration

Target Applications

• 5G base stations: code storage for FPGA configuration
• Automotive dashboard: firmware for infotainment systems
• Industrial PLC: program memory for control logic
• Networking routers: boot code for switch ASICs
• IoT gateways: data logging and OTA updates

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL256LAGBHV020. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S25FL256LAGBHV020 是一款 256Mb（32MB）NOR Flash 存儲器，採用緊湊的 24-ball BGA（8x6mm）封裝。它支持高速 SPI 接口（雙/四 I/O），工作頻率高達 133MHz。專為可靠的代碼存儲和數據記錄設計，具有低功耗和寬溫度範圍（-40°C 至 +85°C）。適用於汽車、工業和網絡應用。

詳細技術參數

核心特性

• 高速 SPI 四 I/O，快速讀寫
• 低功耗：25 mA 讀取，5 μA 待機
• 均勻 4KB 扇區，靈活擦除
• 高級安全功能：OTP、鎖定、密碼保護
• 符合 JEDEC SFDP 標準，易於集成

典型應用場景

• 5G 基站：FPGA 配置代碼存儲
• 汽車儀表盤：信息娛樂系統固件
• 工業 PLC：控制邏輯程序存儲
• 網絡路由器：交換機 ASIC 啟動代碼
• 物聯網網關：數據記錄和 OTA 更新

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL256LAGBHV020 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
