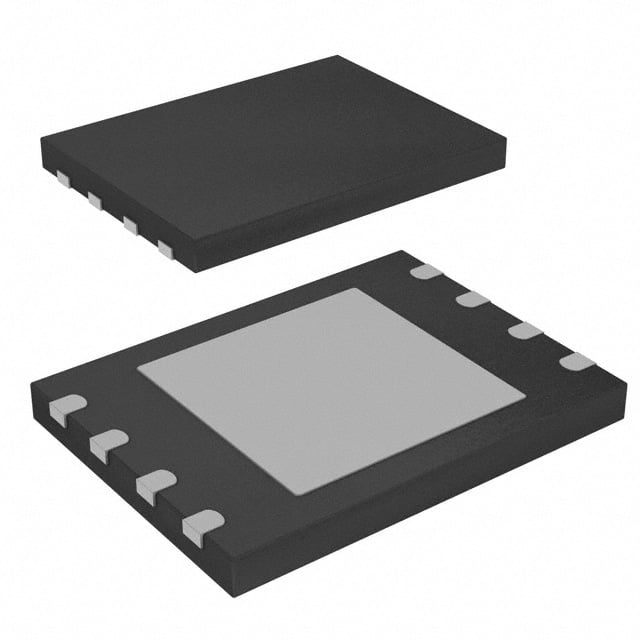

S25FS128SAGNFI103 Infineon NOR Flash | 8-WSON(5x6) | 128Mb, SPI, 133MHz

Product Overview

The Infineon S25FS128SAGNFI103 is a high-performance 128Mb NOR Flash memory device in a compact 8-WSON (5x6mm) package. It features a Serial Peripheral Interface (SPI) with support for Single, Dual, Quad, and Quad I/O SPI protocols, enabling fast read and write operations. Operating at a voltage range of 2.7V to 3.6V, this device is ideal for applications requiring reliable non-volatile memory with low power consumption. The S25FS128SAGNFI103 offers a 133MHz clock frequency and supports advanced features such as Deep Power-Down mode and Software/Hardware Write Protection.

Detailed Technical Specifications

Key Features

• High-speed SPI interface with Quad I/O support for enhanced throughput
• Low power consumption with Deep Power-Down mode (typical 1µA)
• Flexible sector architecture: 256 sectors of 512KB each
• Software and hardware write protection options
• Uniform 4KB subsectors for efficient code and data storage
• Fast program time: 0.5ms typical per page (256 bytes)
• Fast erase time: 40ms typical per 4KB subsector

Target Applications

• 5G base stations: storing boot code and configuration data
• Automotive dashboard: firmware storage for infotainment systems
• Industrial IoT: code shadowing and data logging
• Smart meters: firmware updates and event logging
• Networking equipment: switch and router configuration storage

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FS128SAGNFI103. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S25FS128SAGNFI103 是一款高性能 128Mb NOR Flash 存儲器，採用緊湊的 8-WSON（5x6mm）封裝。它支持 SPI 接口，包括單、雙、四和四 I/O SPI 協議，可實現快速讀寫操作。工作電壓範圍為 2.7V 至 3.6V，適用於需要可靠非易失性存儲且功耗低的應用。該器件提供 133MHz 時鐘頻率，並支持深度掉電模式和軟件/硬件寫保護等高級功能。

詳細技術參數

核心特性

• 高速 SPI 接口，支持四 I/O 以提升吞吐量
• 低功耗，深度掉電模式典型電流 1µA
• 靈活的扇區架構：256 個 512KB 扇區
• 軟件和硬件寫保護選項
• 統一的 4KB 子扇區，便於代碼和數據存儲
• 快速編程時間：每頁（256 字節）典型 0.5ms
• 快速擦除時間：每 4KB 子扇區典型 40ms

典型應用場景

• 5G 基站：存儲啟動代碼和配置數據
• 汽車儀表盤：信息娛樂系統的固件存儲
• 工業物聯網：代碼映射和數據記錄
• 智能電錶：固件更新和事件記錄
• 網絡設備：交換機和路由器配置存儲

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FS128SAGNFI103 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
