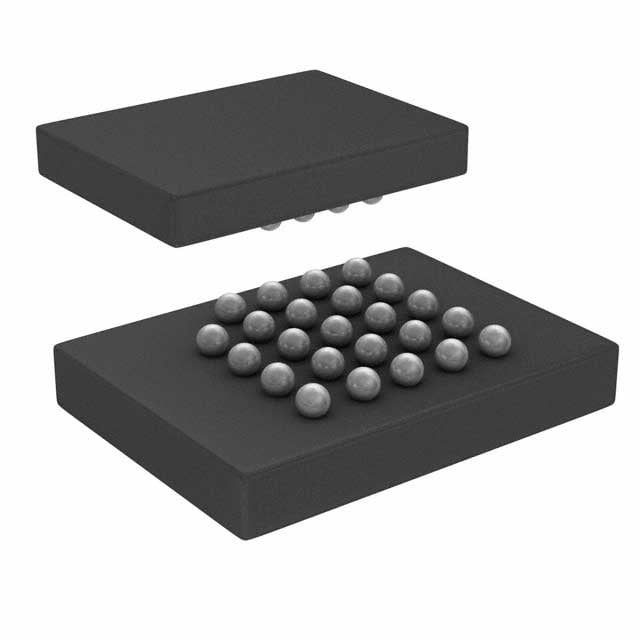

S25HS01GTDPBHI030 Infineon NOR Flash | PG-BGA-24-804 | 1Gbit, 166MHz, 1.8V

Product Overview

The S25HS01GTDPBHI030 is a high-performance 1 Gbit (128 Mbyte) NOR Flash memory device from Infineon's SEMPER™ Nano product family. It is designed for demanding automotive and industrial applications requiring high reliability, fast read speeds, and low power consumption. The device operates at a voltage range of 1.7V to 2.0V (typical 1.8V) and supports a quad SPI (QSPI) interface with data transfer rates up to 166 MHz (DDR mode). It is housed in a compact 24-ball BGA package (PG-BGA-24-804) measuring 6x8 mm, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• High-speed Quad SPI interface with DDR mode up to 166 MHz
• Low power consumption: active read current 25 mA (typical), standby 10 μA
• Advanced security features: OTP area, hardware write protection, and unique ID
• Supports XIP (eXecute in Place) for instant code execution
• Automotive AEC-Q100 qualified (Grade 1: -40°C to +125°C)
• On-chip ECC for enhanced reliability
• Compatible with JEDEC SFDP standard for easy integration

Target Applications

• 5G base stations: firmware storage for baseband processors
• Automotive advanced driver-assistance systems (ADAS): code storage for camera modules
• Automotive instrument clusters: graphics and code storage
• Industrial IoT gateways: boot code and configuration storage
• Smart meters: firmware and data logging
• Medical devices: code storage for portable monitors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25HS01GTDPBHI030. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25HS01GTDPBHI030 是英飛凌 SEMPER™ Nano 產品系列中的一款高性能 1 Gbit（128 Mbyte）NOR 快閃記憶體。專為需要高可靠性、快速讀取速度和低功耗的汽車和工業應用而設計。該器件的工作電壓範圍為 1.7V 至 2.0V（典型值 1.8V），支援四路 SPI（QSPI）介面，資料傳輸速率高達 166 MHz（DDR 模式）。它採用緊湊的 24 球 BGA 封裝（PG-BGA-24-804），尺寸為 6x8 mm，適合空間受限的設計。

詳細技術參數

核心特性

• 高速四路 SPI 介面，DDR 模式高達 166 MHz
• 低功耗：主動讀取電流 25 mA（典型），待機 10 μA
• 先進安全功能：OTP 區域、硬體寫保護和唯一 ID
• 支援 XIP（就地執行），實現即時代碼執行
• 汽車級 AEC-Q100 認證（Grade 1：-40°C 至 +125°C）
• 片上 ECC 增強可靠性
• 符合 JEDEC SFDP 標準，易於整合

典型應用場景

• 5G 基地台：基頻處理器的韌體存儲
• 汽車先進駕駛輔助系統（ADAS）：攝像頭模組的代碼存儲
• 汽車儀表組：圖形和代碼存儲
• 工業物聯網閘道：啟動代碼和配置存儲
• 智慧電表：韌體和數據記錄
• 醫療設備：便攜式監護儀的代碼存儲

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25HS01GTDPBHI030 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
