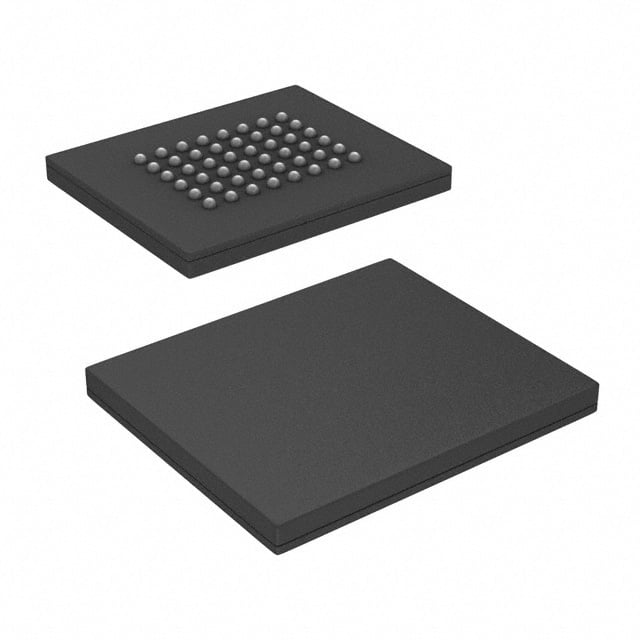

S29AL016J70BFI013 Infineon NOR Flash | 48-FBGA (8.15x6.15) | 16Mb, 70ns

Product Overview

The S29AL016J70BFI013 is a 16 Megabit (2 M x 8-Bit / 1 M x 16-Bit) CMOS 3.0 Volt-only, Boot Sector Flash Memory manufactured by Infineon (formerly Cypress). It features a 70 ns access time and operates from a single 2.7V to 3.6V power supply. The device is organized as 2,097,152 bytes or 1,048,576 words, selectable via the BYTE# pin. It is housed in a compact 48-ball FBGA package (8.15mm x 6.15mm) suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Single 3.0V read, program, and erase (2.7V to 3.6V)
• 70 ns access time
• Flexible sector architecture: 8 Kbyte x 2, 32 Kbyte x 1, 64 Kbyte x 31 (top boot)
• Secured Silicon Sector for permanent protection
• Unlock Bypass Program command for faster programming
• Low power consumption: 20 mA active, 1 µA standby
• Hardware reset pin (RESET#)
• Ready/Busy output (RY/BY#)
• JEDEC standard command set
• Pb-free and RoHS compliant

Target Applications

• 5G base stations: Boot code storage for baseband processors
• Automotive dashboards: Firmware storage for instrument clusters
• Industrial control systems: Configuration data storage
• Networking equipment: Router/switch boot firmware
• Medical devices: Code storage for portable monitors
• Consumer electronics: Set-top boxes, gaming consoles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S29AL016J70BFI013. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
