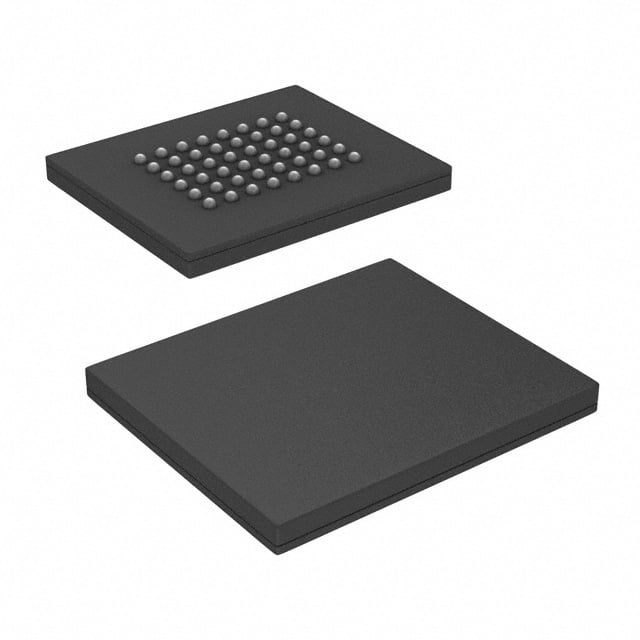

S29AS016J70BHI040 Infineon NOR Flash | 48-FBGA (8.15x6.15) | 16Mb, 70ns

Product Overview

The Infineon S29AS016J70BHI040 is a 16 Megabit (2M x 8-bit) NOR Flash memory device organized as 2,097,152 words of 8 bits each. It operates with a single 3.0V to 3.6V power supply and features a 70 ns access time. Housed in a compact 48-ball FBGA package (8.15mm x 6.15mm), it is ideal for applications requiring high-density, reliable non-volatile memory with fast read performance.

Detailed Technical Specifications

Key Features

• Single 3.0V to 3.6V power supply for read, program, and erase operations
• Fast 70 ns access time for high-speed read
• Low power consumption: 20 mA active read current, 5 μA standby
• Sector architecture: uniform 64 Kbyte sectors
• Software and hardware write protection
• 100,000 program/erase cycles per sector
• 20-year data retention
• Industrial temperature range (-40°C to +85°C)
• Pb-free and RoHS compliant

Target Applications

• 5G base stations: for boot code and configuration storage
• Automotive dashboards: for firmware and calibration data
• Industrial control systems: for program code and parameter storage
• Networking equipment: routers, switches for firmware storage
• Medical devices: for reliable code execution

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S29AS016J70BHI040. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S29AS016J70BHI040 是一款 16 兆位（2M x 8 位）NOR 閃存器件，組織為 2,097,152 個 8 位字。它工作在 3.0V 至 3.6V 的單電源下，訪問時間為 70 ns。採用緊湊的 48 球 FBGA 封裝（8.15mm x 6.15mm），非常適合需要高密度、可靠非易失性存儲器和快速讀取性能的應用。

詳細技術參數

核心特性

• 單一 3.0V 至 3.6V 電源供電，支持讀取、編程和擦除操作
• 快速 70 ns 訪問時間，實現高速讀取
• 低功耗：20 mA 有效讀取電流，5 μA 待機電流
• 扇區架構：統一的 64 Kbyte 扇區
• 軟件和硬件寫保護
• 每個扇區 100,000 次擦寫次數
• 20 年數據保持
• 工業溫度範圍（-40°C 至 +85°C）
• 無鉛且符合 RoHS 標準

典型應用場景

• 5G 基站：用於啟動代碼和配置存儲
• 汽車儀表盤：用於固件和校準數據
• 工業控制系統：用於程序代碼和參數存儲
• 網絡設備：路由器、交換機的固件存儲
• 醫療設備：用於可靠的代碼執行

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S29AS016J70BHI040 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
