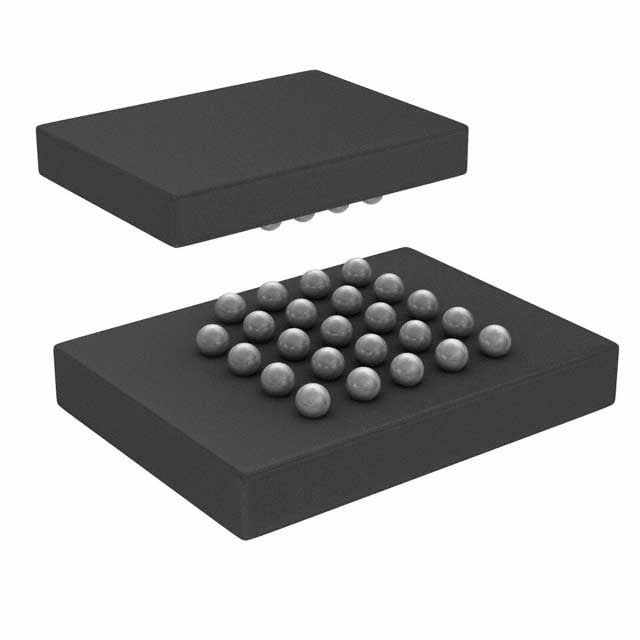

S70FS01GSAGBHM213 Infineon NOR Flash | 24-BGA(8x6) | 1Gb, 166MHz, SPI

Product Overview

The Infineon S70FS01GSAGBHM213 is a high-performance 1Gb (128MB) NOR Flash memory device in a compact 24-ball BGA (8x6mm) package. It features a Serial Peripheral Interface (SPI) with dual/quad/quad I/O support, operating at up to 166MHz clock frequency. This device is designed for reliable code storage and execute-in-place (XIP) applications in demanding environments.

Detailed Technical Specifications

Key Features

• High-speed SPI interface with up to 166 MHz clock
• Dual/Quad I/O for enhanced throughput
• Execute-in-place (XIP) capability
• Low power consumption: active read 25mA, standby 50µA
• Uniform 4KB sectors for flexible erase
• Software and hardware write protection
• JEDEC standard compatible

Target Applications

• 5G base stations: firmware storage for baseband processors
• Automotive dashboard: code storage for infotainment systems
• Industrial IoT: boot code for edge gateways
• Networking equipment: switch/router firmware
• Medical devices: patient monitor firmware

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S70FS01GSAGBHM213. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S70FS01GSAGBHM213 是一款高性能 1Gb (128MB) NOR Flash 存儲器件，採用緊湊的 24-ball BGA (8x6mm) 封裝。它支持 SPI 接口（雙/四/四 I/O），最高工作頻率 166MHz。該器件專為在嚴苛環境中實現可靠的代碼存儲和就地執行 (XIP) 應用而設計。

詳細技術參數

核心特性

• 高速 SPI 接口，最高 166 MHz 時鐘
• 雙/四 I/O 提升吞吐量
• 就地執行 (XIP) 能力
• 低功耗：主動讀取 25mA，待機 50µA
• 統一的 4KB 扇區，靈活擦除
• 軟件和硬件寫保護
• 符合 JEDEC 標準

典型應用場景

• 5G 基站：基帶處理器的固件存儲
• 汽車儀表盤：信息娛樂系統的代碼存儲
• 工業物聯網：邊緣網關的啟動代碼
• 網絡設備：交換機/路由器固件
• 醫療設備：病人監護儀固件

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S70FS01GSAGBHM213 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
