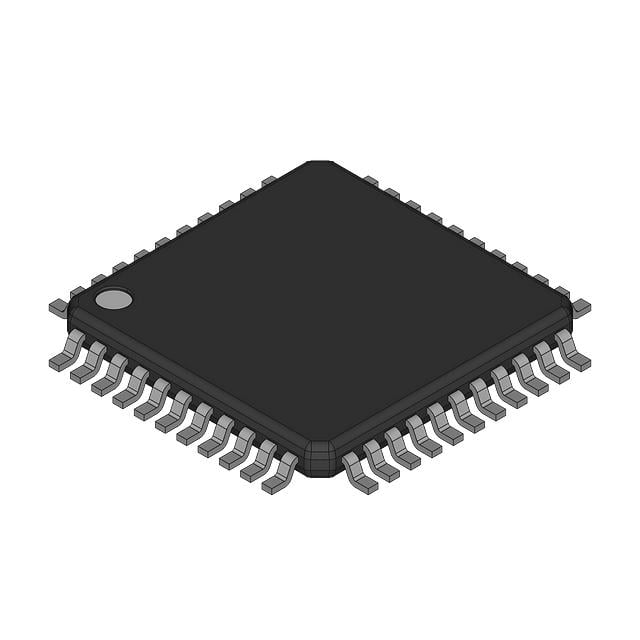

SAF-C505-LM Infineon Microcontroller | P-MQFP-44-1 | 8-bit, 32KB Flash, 2KB RAM

Product Overview

The SAF-C505-LM is an 8-bit microcontroller from Infineon's C500 family, designed for embedded control applications. It features a high-performance 8051-compatible core with 32KB of on-chip Flash memory and 2KB of RAM. The device operates at a maximum frequency of 40 MHz and includes a rich set of peripherals such as a 10-bit ADC, multiple timers, serial interfaces (UART, SPI, I2C), and a CAN interface. The P-MQFP-44-1 package offers a compact footprint suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• High-performance 8-bit CPU with 40 MHz operation
• 32 KB on-chip Flash with In-System Programming (ISP) capability
• 2 KB on-chip RAM
• 10-bit ADC with 8 multiplexed inputs
• Full-duplex UART, SPI, and I2C interfaces
• CAN 2.0B controller for automotive and industrial networking
• Three 16-bit timers/counters and a watchdog timer
• Up to 34 general-purpose I/O pins
• Low-power modes: Idle and Power-down
• Enhanced ESD protection and robust design for harsh environments

Target Applications

The SAF-C505-LM is ideal for a wide range of embedded applications, including:

• Automotive: Engine control units (ECU), body control modules, dashboard controllers
• Industrial: PLCs, motor control, sensor interfaces
• Consumer: Home appliances, smart meters, gaming peripherals
• Communication: 5G base station power management, network switches
• Medical: Patient monitoring devices, diagnostic equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SAF-C505-LM. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
