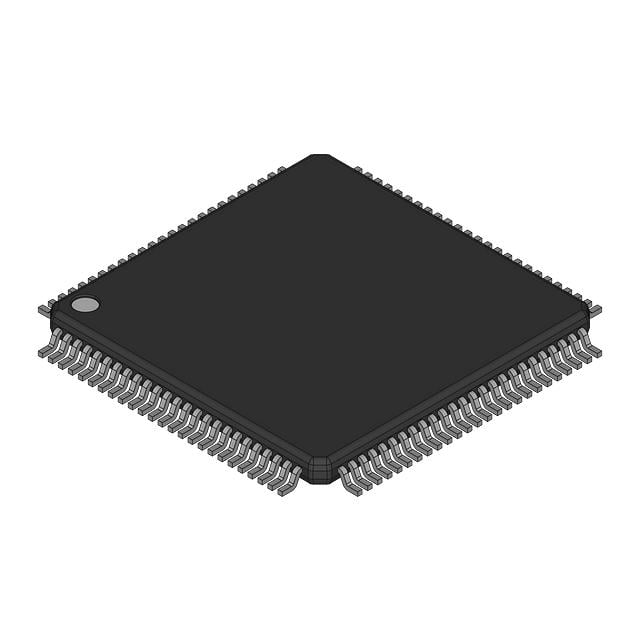

SAF-XC164N-8F40FBB Infineon 16-bit MCU | PG-TQFP-100-5 | 40MHz, 128KB Flash

Product Overview

The SAF-XC164N-8F40FBB is a high-performance 16-bit microcontroller from Infineon's XC164 series, designed for real-time embedded control applications. It features a C166S V2 core with a maximum clock frequency of 40 MHz, delivering up to 40 MIPS. The device integrates 128 KB of Flash memory, 8 KB of RAM, and a rich set of peripherals including multiple CAN interfaces, A/D converters, and capture/compare units. Housed in a PG-TQFP-100-5 package, it is ideal for automotive, industrial, and communication systems requiring robust performance and reliability.

Detailed Technical Specifications

Key Features

• High-performance 16-bit C166S V2 core with single-cycle instruction execution
• Up to 40 MIPS at 40 MHz
• 128 KB on-chip Flash with ECC support
• 8 KB on-chip RAM
• Two MultiCAN interfaces with 32 message objects each
• 10-bit A/D converter with 16 channels and conversion time < 2 µs
• Flexible PWM generation via capture/compare units
• On-chip bootstrap loader for easy programming
• Low power consumption with multiple power-saving modes
• Extended temperature range for harsh environments

Target Applications

• Automotive: Engine control units (ECU), transmission control, ABS systems, dashboard controllers
• Industrial: Programmable logic controllers (PLC), motor drives, robotics, power inverters
• Communication: 5G base station control modules, network switches, industrial Ethernet gateways
• Consumer: Home automation, smart appliances, HVAC control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SAF-XC164N-8F40FBB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SAF-XC164N-8F40FBB 是英飛凌 XC164 系列的高性能 16 位微控制器，專為實時嵌入式控制應用而設計。它採用 C166S V2 內核，最高時鐘頻率為 40 MHz，可提供高達 40 MIPS 的性能。該器件集成了 128 KB 閃存、8 KB RAM 以及豐富的外設，包括多個 CAN 接口、A/D 轉換器和捕獲/比較單元。採用 PG-TQFP-100-5 封裝，適用於需要強大性能和可靠性的汽車、工業和通信系統。

詳細技術參數

核心特性

• 高性能 16 位 C166S V2 內核，單週期指令執行
• 40 MHz 下高達 40 MIPS
• 128 KB 片上閃存，支持 ECC
• 8 KB 片上 RAM
• 兩個 MultiCAN 接口，每個有 32 個消息對象
• 10 位 A/D 轉換器，16 通道，轉換時間 < 2 µs
• 通過捕獲/比較單元實現靈活的 PWM 生成
• 片上引導加載程序，易於編程
• 低功耗，多種省電模式
• 擴展溫度範圍，適用於惡劣環境

典型應用場景

• 汽車：發動機控制單元 (ECU)、變速箱控制、ABS 系統、儀表板控制器
• 工業：可編程邏輯控制器 (PLC)、電機驅動、機器人、電源逆變器
• 通信：5G 基站控制模塊、網絡交換機、工業以太網網關
• 消費類：家庭自動化、智能家電、暖通空調控制

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SAF-XC164N-8F40FBB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
