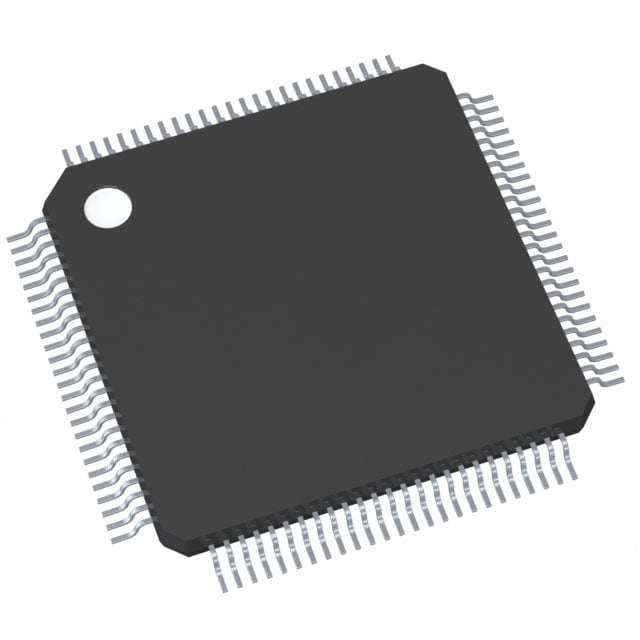

TC223L16F133NACKXUMA1 Infineon MCU | PG-TQFP-100-23 | 133MHz, 1.6MB Flash

Product Overview

The Infineon TC223L16F133NACKXUMA1 is a high-performance 32-bit microcontroller from the AURIX™ TC22xL family, designed for demanding automotive and industrial applications. It features a TriCore™ architecture with a single core running at up to 133 MHz, providing exceptional real-time performance. The device integrates 1.6 MB of Flash memory and 128 KB of RAM, along with a rich set of peripherals including multiple CAN FD, LIN, and SPI interfaces. Housed in a compact PG-TQFP-100-23 package, it offers a balance of performance, memory, and connectivity for advanced embedded systems.

Detailed Technical Specifications

Key Features

• High-performance TriCore™ CPU with DSP capabilities
• Up to 133 MHz operation for real-time control
• Large on-chip Flash (1.6 MB) and RAM (128 KB)
• Advanced communication interfaces: CAN FD, LIN, SPI, I2C
• Flexible PWM generation for motor control
• Integrated safety features (SIL3/ASIL-D ready)
• Low power consumption with multiple sleep modes
• Wide operating temperature range (-40°C to +125°C)

Target Applications

• Automotive: Engine control units (ECU), transmission control, battery management systems (BMS), advanced driver-assistance systems (ADAS) sensors
• Industrial: Programmable logic controllers (PLC), motor drives, robotics, power inverters for solar and UPS
• Consumer: High-end home appliances, smart grid devices, electric vehicle charging stations
• Specific examples: 5G base station power management, automotive dashboard controllers, industrial servo drives

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TC223L16F133NACKXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 TC223L16F133NACKXUMA1 是一款高性能 32 位微控制器，屬於 AURIX™ TC22xL 系列，專為要求嚴苛的汽車和工業應用而設計。它採用 TriCore™ 架構，單核運行頻率高達 133 MHz，提供卓越的實時性能。該器件集成了 1.6 MB 閃存和 128 KB RAM，以及豐富的外設，包括多個 CAN FD、LIN 和 SPI 接口。採用緊湊的 PG-TQFP-100-23 封裝，在性能、內存和連接性之間實現了平衡，適用於先進的嵌入式系統。

詳細技術參數

核心特性

• 高性能 TriCore™ CPU，具備 DSP 功能
• 高達 133 MHz 的運行頻率，適用於實時控制
• 大容量片上閃存（1.6 MB）和 RAM（128 KB）
• 先進通信接口：CAN FD、LIN、SPI、I2C
• 靈活的 PWM 生成，適用於電機控制
• 集成安全功能（SIL3/ASIL-D 就緒）
• 低功耗，多種睡眠模式
• 寬工作溫度範圍（-40°C 至 +125°C）

典型應用場景

• 汽車：發動機控制單元（ECU）、變速箱控制、電池管理系統（BMS）、高級駕駛輔助系統（ADAS）傳感器
• 工業：可編程邏輯控制器（PLC）、電機驅動、機器人、太陽能和 UPS 的電源逆變器
• 消費類：高端家電、智能電網設備、電動汽車充電樁
• 具體示例：5G 基站電源管理、汽車儀表盤控制器、工業伺服驅動器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TC223L16F133NACKXUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
