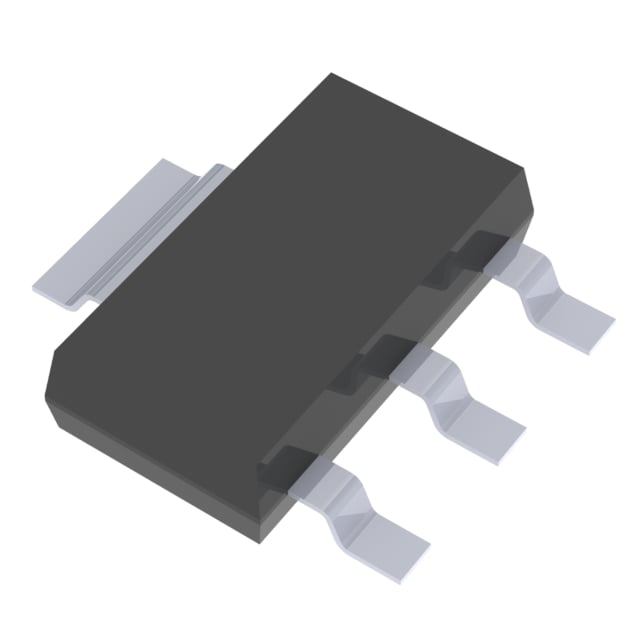

TLE42744GSV33HTMA1 Infineon LDO Regulator | PG-SOT223-4 | 3.3V Output, 400mA

Product Overview

The TLE42744GSV33HTMA1 is a low-dropout voltage regulator (LDO) from Infineon, designed for automotive and industrial applications. It provides a fixed output voltage of 3.3V with a maximum output current of 400mA. The device is housed in a PG-SOT223-4 package, offering excellent thermal performance and space-saving design. With a low dropout voltage of typically 0.25V at 100mA, it ensures efficient operation even under low input voltage conditions. The regulator features integrated protection functions including overtemperature shutdown, overcurrent limitation, and reverse polarity protection, making it robust for harsh environments.

Detailed Technical Specifications

Key Features

• Fixed 3.3V output voltage
• 400mA output current capability
• Low dropout voltage: 0.25V typ at 100mA
• Wide input voltage range: 4.5V to 40V
• Very low quiescent current: 30µA typ
• High PSRR: 60dB at 100Hz
• Integrated protection: overtemperature, overcurrent, reverse polarity
• Automotive qualified (AEC-Q100)
• PG-SOT223-4 package for compact design

Target Applications

• Automotive ECUs (engine control units, transmission control)
• Infotainment systems (dashboard displays, navigation units)
• 5G base station power management
• Industrial sensors and actuators
• Battery-powered equipment
• Post-regulation for switching power supplies

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLE42744GSV33HTMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLE42744GSV33HTMA1 是英飛凌推出的一款低壓差穩壓器（LDO），專為汽車和工業應用設計。它提供固定的 3.3V 輸出電壓，最大輸出電流為 400mA。器件採用 PG-SOT223-4 封裝，具有出色的熱性能和節省空間的設計。在 100mA 負載下，典型壓差僅為 0.25V，確保在低輸入電壓條件下高效運行。穩壓器集成了過溫關斷、過流限制和反極性保護等功能，使其能夠在惡劣環境中穩定工作。

詳細技術參數

核心特性

• 固定 3.3V 輸出電壓
• 400mA 輸出電流能力
• 低壓差：100mA 時典型 0.25V
• 寬輸入電壓範圍：4.5V 至 40V
• 極低靜態電流：典型 30µA
• 高 PSRR：100Hz 時 60dB
• 集成保護：過溫、過流、反極性
• 通過汽車級認證（AEC-Q100）
• PG-SOT223-4 封裝，設計緊湊

典型應用場景

• 汽車 ECU（發動機控制單元、變速箱控制）
• 信息娛樂系統（儀表盤顯示、導航單元）
• 5G 基站電源管理
• 工業傳感器和執行器
• 電池供電設備
• 開關電源後級穩壓

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLE42744GSV33HTMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
