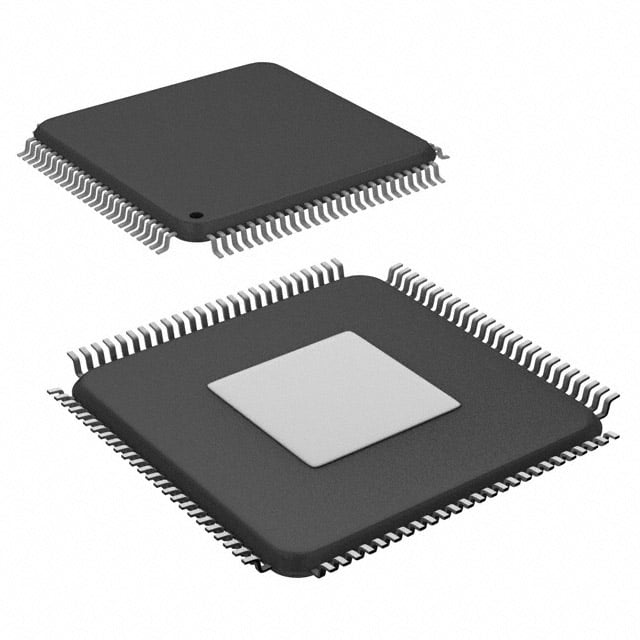

XMC4700F100K1536AAXQMA1 Infineon MCU | PG-LQFP-100-25 | 200MHz, 1.5MB Flash

Product Overview

The XMC4700F100K1536AAXQMA1 is a high-performance 32-bit microcontroller from Infineon's XMC4000 family, based on the ARM Cortex-M4 core with a floating-point unit (FPU). It operates at up to 200 MHz and features 1.5 MB of flash memory and 276 KB of RAM. The device is housed in a PG-LQFP-100-25 package, offering a compact footprint for industrial and automotive applications. It integrates advanced peripherals including multiple communication interfaces (CAN, Ethernet, USB), high-resolution PWM timers, and analog modules such as ADCs and DACs. The XMC4700 is designed for real-time control applications requiring high computational power and connectivity.

Detailed Technical Specifications

Key Features

• ARM Cortex-M4 core with DSP instructions and FPU for efficient signal processing
• High-speed communication: Ethernet, USB OTG, CAN FD, SPI, I2C, UART
• High-resolution PWM (150 ps) for precise motor control and power conversion
• Rich analog peripherals: dual 12-bit ADCs, dual 12-bit DACs, comparators
• Up to 87 GPIOs with programmable interrupt capability
• On-chip debug support via JTAG and SWD
• Low-power modes for energy-sensitive applications
• Comprehensive safety features: ECC on flash, parity on SRAM, watchdog timer

Target Applications

• Industrial motor drives and servo controllers
• 5G base station power management and control
• Automotive dashboard and infotainment systems
• Renewable energy inverters (solar, wind)
• Robotics and automation controllers
• Medical devices requiring high reliability

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for XMC4700F100K1536AAXQMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

XMC4700F100K1536AAXQMA1 是英飛凌 XMC4000 系列的高性能 32 位微控制器，基於 ARM Cortex-M4 內核並帶有浮點運算單元 (FPU)。最高工作頻率 200 MHz，配備 1.5 MB 閃存和 276 KB RAM。採用 PG-LQFP-100-25 封裝，體積緊湊，適用於工業和汽車應用。集成多種通信接口（CAN、乙太網、USB）、高解析度 PWM 定時器以及 ADC、DAC 等模擬模塊。專為需要高計算能力和連接性的實時控制應用設計。

詳細技術參數

核心特性

• ARM Cortex-M4 內核，帶 DSP 指令和 FPU，高效信號處理
• 高速通信：乙太網、USB OTG、CAN FD、SPI、I2C、UART
• 高解析度 PWM (150 ps)，適用於精確電機控制和電源轉換
• 豐富的模擬外設：雙 12 位 ADC、雙 12 位 DAC、比較器
• 最多 87 個 GPIO，可編程中斷
• 片上調試支持 JTAG 和 SWD
• 低功耗模式，適用於節能應用
• 全面的安全特性：閃存 ECC、SRAM 奇偶校驗、看門狗定時器

典型應用場景

• 工業電機驅動和伺服控制器
• 5G 基站電源管理和控制
• 汽車儀表盤和信息娛樂系統
• 可再生能源逆變器（太陽能、風能）
• 機器人和自動化控制器
• 需要高可靠性的醫療設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 XMC4700F100K1536AAXQMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
