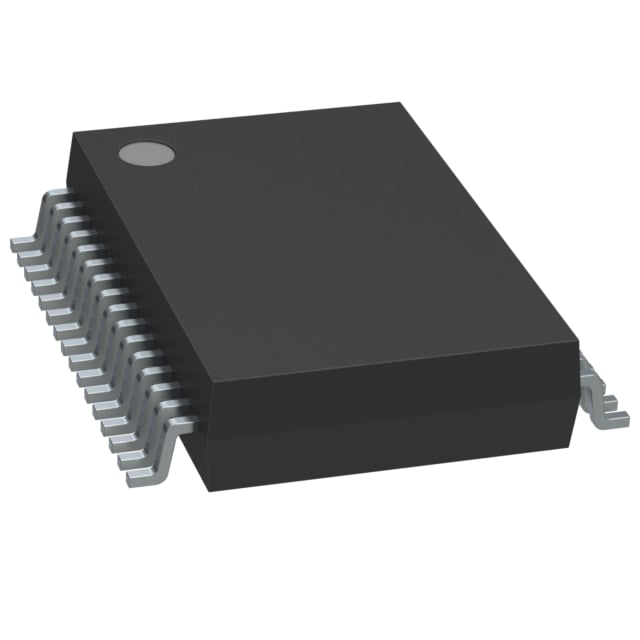

MC33882PEKR2 NXP Power Switch | 32-SOIC-EP | 8-Channel, 0.6A, SPI

Product Overview

The MC33882PEKR2 is a monolithic, 8-channel, high-side power switch from NXP Semiconductors, designed for automotive and industrial applications. It integrates eight low RDS(on) MOSFETs with advanced protection and diagnostic features, controlled via a 16-bit SPI interface. The device operates from 5.5V to 27V supply voltage and can deliver up to 0.6A per channel. Housed in a 32-pin SOIC with exposed pad (32-SOIC-EP), it offers excellent thermal performance. The MC33882PEKR2 is ideal for driving resistive, capacitive, and inductive loads such as relays, lamps, and solenoids.

Detailed Technical Specifications

Key Features

• 8-channel high-side power switch with SPI control
• Low RDS(on) of 0.5Ω per channel minimizes power dissipation
• Comprehensive diagnostic and protection: overcurrent, overtemperature, undervoltage, open load detection
• 16-bit SPI interface for control and fault reporting
• Output ON/OFF control with PWM capability up to 1kHz
• Very low standby current (<5μA) for battery-powered applications
• Wide operating voltage range (5.5V to 27V) suitable for automotive and industrial systems
• Exposed pad package for enhanced thermal dissipation

Target Applications

• Automotive: Body control modules (BCM), lighting control (LED headlamps, interior lights), relay drivers, seat control modules
• Industrial: Programmable logic controllers (PLC), motor control, solenoid drivers, actuator control
• Consumer: Smart home hubs, power distribution units (PDU)
• Specific examples: 5G base station power management, electric vehicle (EV) battery management system (BMS) auxiliary loads, dashboard backlighting, HVAC blower motor control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MC33882PEKR2. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

MC33882PEKR2 是恩智浦半導體推出的一款單片8通道高邊功率開關，專為汽車和工業應用設計。它集成了八個低導通電阻（RDS(on)）MOSFET，並具有先進的保護和診斷功能，通過16位SPI接口進行控制。該器件在5.5V至27V電源電壓下工作，每通道可提供高達0.6A的電流。採用32引腳SOIC封裝（帶裸露焊盤），散熱性能優異。MC33882PEKR2 非常適合驅動電阻性、電容性和電感性負載，如繼電器、燈泡和電磁閥。

詳細技術參數

核心特性

• 8通道高邊功率開關，SPI控制
• 低導通電阻（0.5Ω），降低功耗
• 全面的診斷和保護：過流、過溫、欠壓、開路負載檢測
• 16位SPI接口，用於控制和故障報告
• 輸出開/關控制，支持高達1kHz的PWM
• 極低待機電流（<5μA），適用於電池供電應用
• 寬工作電壓範圍（5.5V至27V），適用於汽車和工業系統
• 裸露焊盤封裝，增強散熱

典型應用場景

• 汽車：車身控制模塊（BCM）、照明控制（LED頭燈、車內燈）、繼電器驅動、座椅控制模塊
• 工業：可編程邏輯控制器（PLC）、電機控制、電磁閥驅動、執行器控制
• 消費類：智能家居中樞、電源分配單元（PDU）
• 具體示例：5G基站電源管理、電動汽車（EV）電池管理系統（BMS）輔助負載、儀表板背光、HVAC鼓風機電機控制

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 MC33882PEKR2 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
