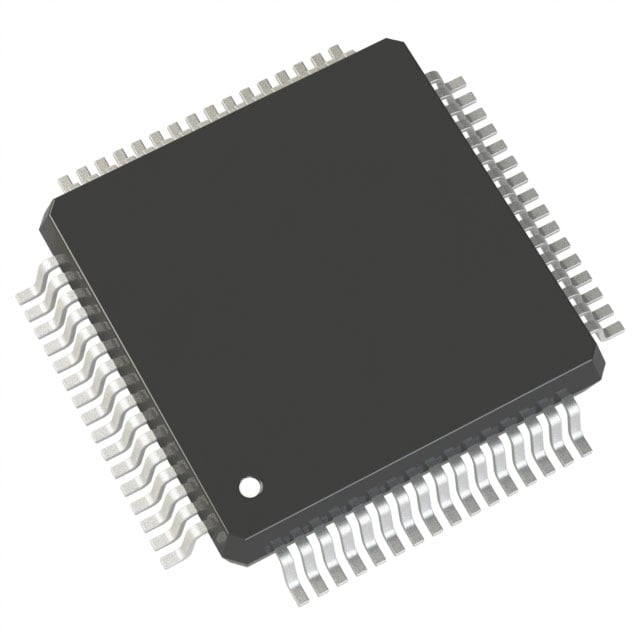

MWCT1001AVLH NXP Wireless Charging IC | 64-LQFP (10x10) | 15W, Qi-compatible

Product Overview

The MWCT1001AVLH is a highly integrated wireless power transmitter controller from NXP Semiconductors, designed for efficient and reliable wireless charging solutions. It supports up to 15W output power and is fully compliant with the Qi standard (version 1.2.4). The device integrates a 32-bit ARM Cortex-M0 core, power drivers, and communication demodulation circuitry, enabling a compact BOM and simplified design. Housed in a 64-LQFP (10x10 mm) package, it is ideal for consumer, automotive, and industrial applications requiring robust foreign object detection (FOD) and low standby power.

Detailed Technical Specifications

Key Features

• Qi 1.2.4 compliant with baseline and extended power profile
• Integrated full-bridge inverter with gate drivers
• Built-in current sensing and demodulation for communication
• Advanced foreign object detection (FOD) with Q-factor and power loss
• Low standby power consumption (< 10 mW)
• Programmable via I2C and UART interfaces
• Multiple protection features: over-voltage, over-current, over-temperature
• Supports dynamic power limiting (DPL) for thermal management

Target Applications

• Automotive wireless charging pads (e.g., in-dash chargers for smartphones)
• Consumer electronics: desktop chargers, power banks, furniture-integrated chargers
• Medical devices: wireless charging for portable diagnostic equipment
• Industrial: handheld scanners, barcode readers, IoT sensors
• Smart home: smart speakers, smart displays with charging base

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MWCT1001AVLH. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

MWCT1001AVLH 是恩智浦半導體推出的一款高度集成的無線電源發射控制器，專為高效、可靠的無線充電解決方案設計。它支持高達 15W 的輸出功率，完全符合 Qi 標準（版本 1.2.4）。該器件集成了 32 位 ARM Cortex-M0 內核、功率驅動器和通信解調電路，實現了緊湊的 BOM 和簡化的設計。採用 64-LQFP（10x10 mm）封裝，適用於消費電子、汽車和工業應用，具有強大的異物檢測（FOD）和低待機功耗。

詳細技術參數

核心特性

• 符合 Qi 1.2.4 標準，支持基礎和擴展功率模式
• 集成全橋逆變器及柵極驅動器
• 內置電流檢測和通信解調電路
• 先進的異物檢測（FOD），基於 Q 值和功率損耗
• 低待機功耗（< 10 mW）
• 通過 I2C 和 UART 接口可編程
• 多種保護功能：過壓、過流、過溫
• 支持動態功率限制（DPL）以實現熱管理

典型應用場景

• 車載無線充電板（例如儀表盤內置手機充電器）
• 消費電子：桌面充電器、移動電源、家具集成充電器
• 醫療設備：便攜式診斷設備的無線充電
• 工業：手持掃描器、條碼閱讀器、物聯網傳感器
• 智能家居：智能音箱、智能顯示屏充電底座

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 MWCT1001AVLH 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
