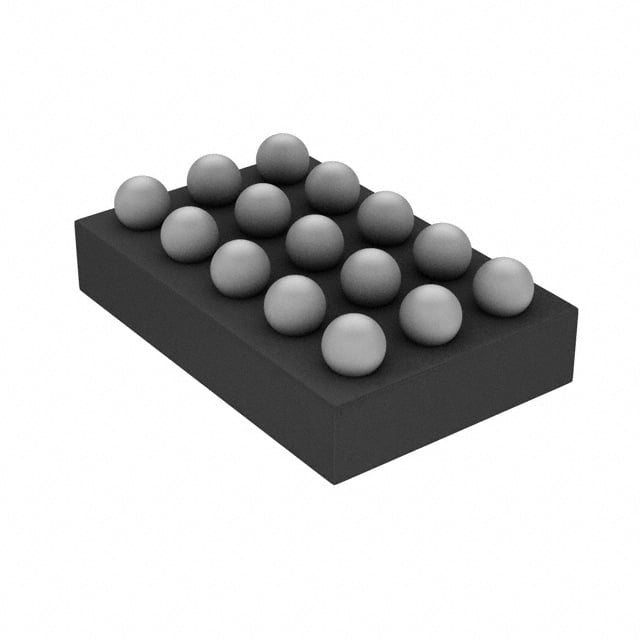

NX20P5090UKAZ NXP Power Management IC | 15-WLCSP (2.56x1.54) | 5.5V Input, 3A Output

Product Overview

The NX20P5090UKAZ from NXP Semiconductors is a high-performance power management IC designed for space-constrained applications. Housed in a compact 15-WLCSP (2.56x1.54 mm) package, this device integrates a low-dropout regulator (LDO) with a load switch, offering efficient power distribution and protection. It supports an input voltage range of 2.5V to 5.5V and delivers up to 3A of continuous output current. The device features ultra-low quiescent current, making it ideal for battery-powered systems. With built-in overcurrent, overtemperature, and short-circuit protection, the NX20P5090UKAZ ensures reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Ultra-low quiescent current (45µA) for extended battery life
• High PSRR (70dB @ 1kHz) for noise-sensitive applications
• Integrated load switch with controlled slew rate
• Small footprint: 15-WLCSP (2.56x1.54 mm)
• Comprehensive protection: OCP, OTP, SCP, reverse current blocking
• Enable pin for power sequencing
• Output discharge function

Target Applications

• 5G base station power management modules
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., patient monitors)
• Industrial IoT sensors and gateways
• Smartphones and tablets
• Wearable electronics (e.g., smartwatches)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for NX20P5090UKAZ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
