PCA9634D,118 NXP LED Driver | 20-SO | I2C, 8-bit PWM

Product Overview

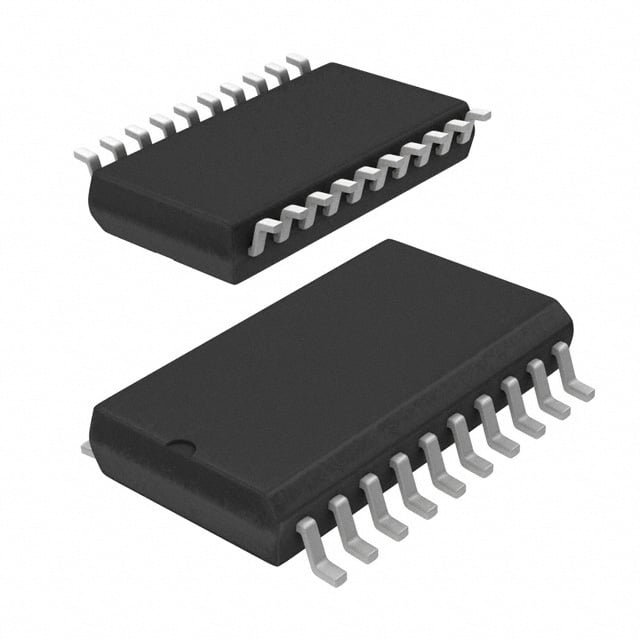

The PCA9634D,118 from NXP Semiconductors is a 8-bit Fm+ I2C-bus LED driver optimized for red/green/amber/blue (RGBA) color mixing and backlight applications. It provides 8 open-drain outputs, each capable of driving up to 25 mA, with programmable PWM dimming and group dimming/blinking. The device operates from 2.3 V to 5.5 V and is housed in a 20-pin SOIC package.

Detailed Technical Specifications

Key Features

• 8 open-drain outputs with 25 mA sink capability
• Individual PWM brightness control (8-bit)
• Group dimming and blinking via I2C
• Programmable output state (on/off/PWM)
• Internal oscillator with no external components
• Low standby current (1 µA typical)
• I2C-bus interface with 4 hardware address pins (up to 16 devices)
• Output state change on ACK to avoid glitches

Target Applications

• RGB LED color mixing in 5G base station status indicators
• Backlight control for automotive dashboard displays
• LED status indicators in industrial control panels
• General-purpose I/O expansion with PWM
• Portable electronics (smartphones, tablets) for notification LEDs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCA9634D,118. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
