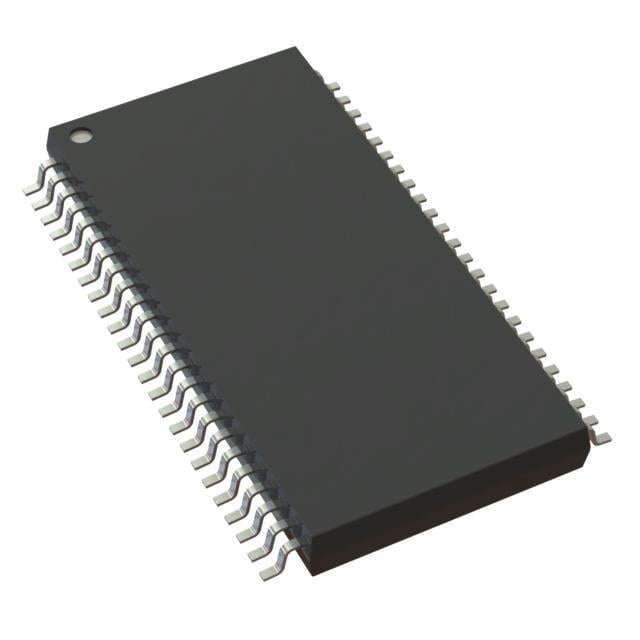

PCF8551ATT/AY NXP LCD Driver | 48-TSSOP | 1.8V-5.5V, 4x40 Segments

Product Overview

The PCF8551ATT/AY is a low-power LCD driver from NXP Semiconductors, designed for driving multiplexed LCD displays with up to 4 backplanes and 40 segments. It operates over a wide supply voltage range of 1.8V to 5.5V, making it suitable for battery-powered and portable applications. The device communicates via I2C-bus interface, offering flexible control and minimal pin count. Housed in a compact 48-TSSOP package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.8V to 5.5V
• Low power consumption: typ. 10 µA in standby
• I2C-bus interface with programmable display configuration
• Built-in charge pump for LCD bias generation
• Support for 1/4 duty cycle and 1/3 bias
• Internal oscillator for display timing
• Software programmable frame frequency
• 48-pin TSSOP package for compact designs

Target Applications

• Portable medical devices (e.g., glucose meters, thermometers)
• Smart home control panels (e.g., thermostat displays)
• Automotive dashboard indicators
• Industrial instrumentation (e.g., flow meters, pressure gauges)
• Consumer electronics (e.g., remote controls, kitchen appliances)
• 5G base station status displays

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCF8551ATT/AY. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
