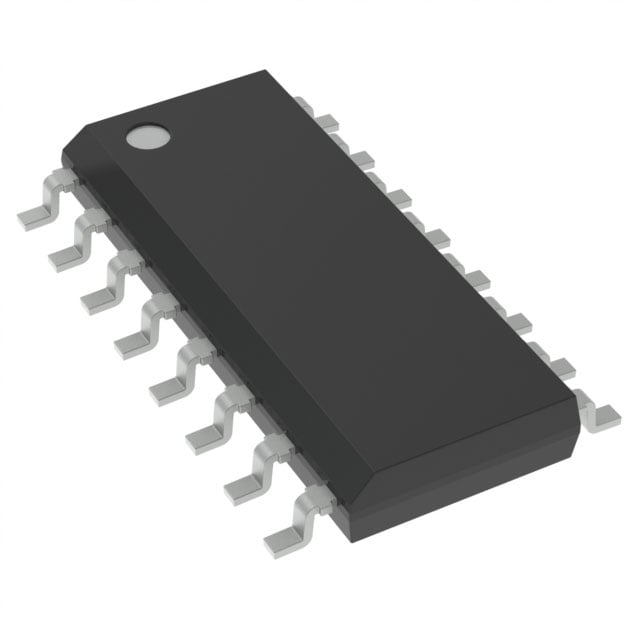

E-L5991AD ST PWM Controller | 16-SO | 1MHz, 50% Duty Cycle

Product Overview

The E-L5991AD from STMicroelectronics is a high-performance current-mode PWM controller designed for offline and DC-DC converters. It operates at a fixed frequency up to 1MHz and features a 50% maximum duty cycle. The device integrates a 700V startup circuit, soft-start, and protection features including overcurrent, overvoltage, and thermal shutdown. Housed in a compact 16-SO package, it is ideal for power supplies requiring high efficiency and reliability.

Detailed Technical Specifications

Key Features

• Current-mode control with cycle-by-cycle current limiting
• Programmable soft-start
• Under-voltage lockout (UVLO) with hysteresis
• Overvoltage protection (OVP)
• Thermal shutdown
• Low startup current
• Frequency jitter for EMI reduction

Target Applications

The E-L5991AD is suitable for a wide range of power supply applications, including:

• AC-DC adapters for laptops and chargers
• Offline power supplies for 5G base stations
• DC-DC converters for automotive dashboards
• Industrial power supplies for PLCs and motor drives
• LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for E-L5991AD. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
