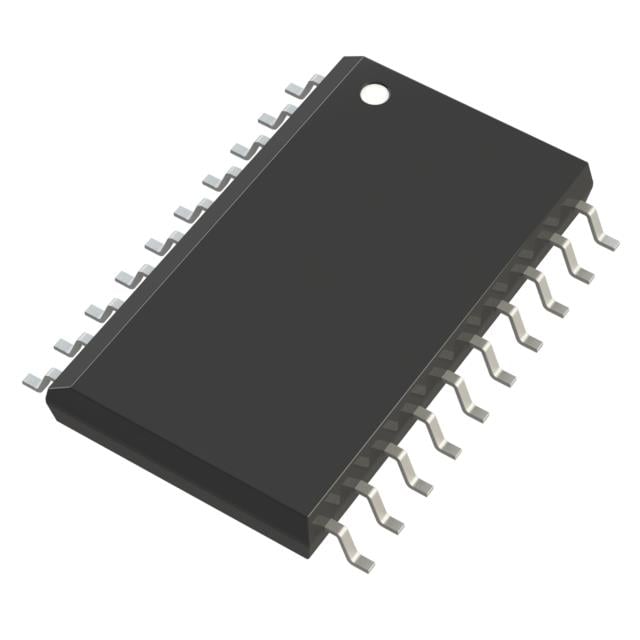

L6201 ST DMOS Full-Bridge Driver | 20-SO | 1.5A Output, 8-52V Supply

Product Overview

The L6201 is a monolithic full-bridge driver designed by STMicroelectronics, fabricated in BCD (Bipolar-CMOS-DMOS) technology. It integrates a DMOS full-bridge with a constant off-time PWM current controller, enabling efficient and precise motor control. The device operates from a supply voltage range of 8V to 52V and can deliver up to 1.5A of continuous output current. Housed in a compact 20-pin SO package, the L6201 is ideal for driving DC motors, bipolar stepper motors, and other inductive loads in industrial and automotive applications.

Detailed Technical Specifications

Key Features

• DMOS full-bridge with low R_DS(on) for high efficiency
• Integrated constant off-time PWM current controller
• Wide supply voltage range (8V to 52V)
• High output current capability (1.5A continuous, 2.5A peak)
• Thermal shutdown and under-voltage lockout protection
• Cross-conduction protection for robust operation
• Compatible with TTL/CMOS logic levels
• Compact 20-SO package with exposed pad for thermal dissipation

Target Applications

• DC motor drivers for industrial automation (e.g., conveyor belt motors)
• Bipolar stepper motor drivers for 3D printers and CNC machines
• Actuator control in automotive systems (e.g., HVAC flap motors)
• Robotics (e.g., joint motors in collaborative robots)
• General-purpose inductive load driving (e.g., solenoids, relays)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6201. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

L6201 是意法半導體（STMicroelectronics）採用 BCD（雙極- CMOS - DMOS）工藝製造的單片全橋驅動器。它集成了 DMOS 全橋和固定關斷時間 PWM 電流控制器，可實現高效精確的電機控制。該器件的工作電源電壓範圍為 8V 至 52V，可提供高達 1.5A 的連續輸出電流。L6201 採用緊湊的 20 引腳 SO 封裝，非常適合驅動工業和汽車應用中的直流電機、雙極步進電機及其他感性負載。

詳細技術參數

核心特性

• DMOS 全橋，低導通電阻，高效率
• 集成固定關斷時間 PWM 電流控制器
• 寬電源電壓範圍（8V 至 52V）
• 高輸出電流能力（1.5A 連續，2.5A 峰值）
• 熱關斷和欠壓鎖定保護
• 交叉導通保護，確保穩健運行
• 兼容 TTL/CMOS 邏輯電平
• 緊湊的 20-SO 封裝，帶裸露焊盤以增強散熱

典型應用場景

• 工業自動化中的直流電機驅動（例如輸送帶電機）
• 3D 打印機和 CNC 機床中的雙極步進電機驅動
• 汽車系統中的執行器控制（例如 HVAC 風門電機）
• 機器人技術（例如協作機器人的關節電機）
• 通用感性負載驅動（例如電磁閥、繼電器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 L6201 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
