L6201PSTR ST DMOS Full-Bridge Driver | 20-SO | 2.8A Output, 8-52V Supply

Product Overview

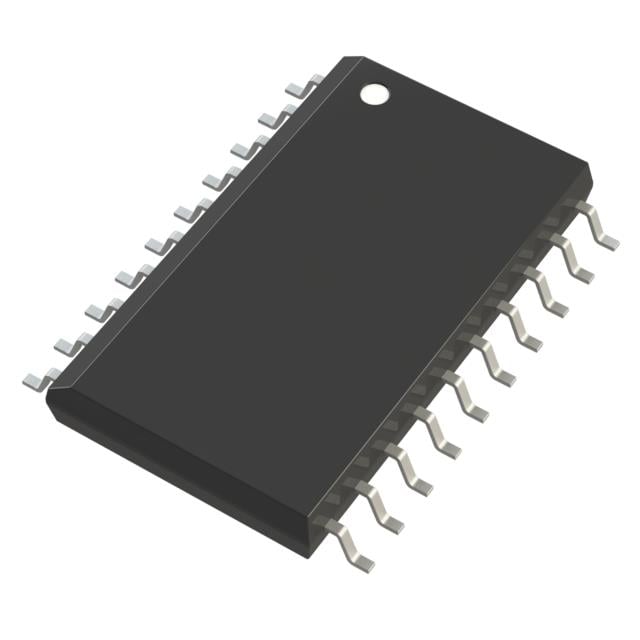

The L6201PSTR is a DMOS full-bridge driver designed by STMicroelectronics, housed in a 20-SO package. It integrates a dual DMOS full-bridge configuration with a constant current control circuit, making it ideal for driving bipolar stepper motors or two DC motors. The device operates from a supply voltage range of 8V to 52V and can deliver up to 2.8A of output current per bridge. Its built-in protection features include thermal shutdown, cross-conduction protection, and under-voltage lockout, ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Dual DMOS full-bridge configuration
• Constant current control with PWM
• Low RDS(on) for high efficiency
• Wide supply voltage range
• Integrated protection: thermal shutdown, cross-conduction, UVLO
• Compatible with TTL/CMOS logic levels
• Fast switching capability up to 100 kHz

Target Applications

• Bipolar stepper motor drivers for 3D printers, CNC machines
• DC motor drivers for automotive actuators (e.g., mirror adjustment, seat control)
• Robotics and automation systems
• Industrial valve control
• Office automation equipment (e.g., printers, scanners)
