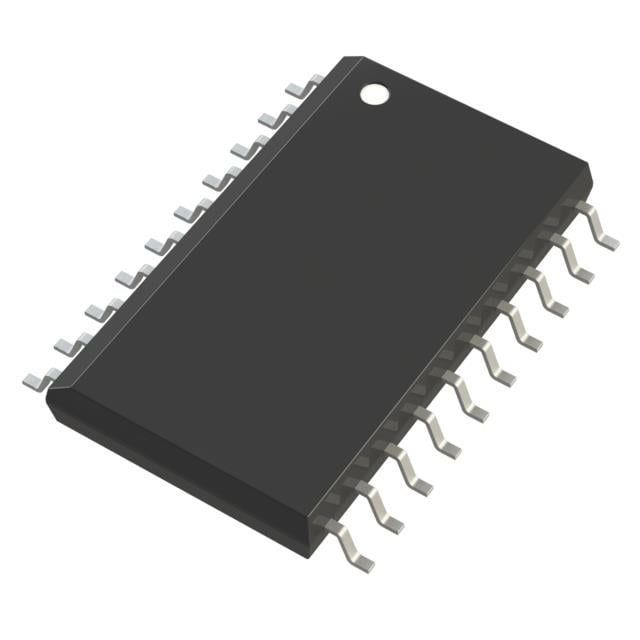

L6225DTR ST DMOS Driver | 20-SO | 1.5A, 52V

Product Overview

The L6225DTR is a DMOS dual full-bridge driver manufactured by STMicroelectronics, designed for driving bipolar stepper motors or two DC motors. It integrates two independent full-bridge circuits with DMOS power transistors, each capable of delivering up to 1.5 A of continuous output current and operating from a supply voltage up to 52 V. The device features a non-dissipative overcurrent protection, thermal shutdown, and a cross-conduction protection. The L6225DTR is housed in a compact 20-pin SO package, making it suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Dual DMOS full-bridge driver
• Output current up to 1.5 A per bridge (2 A peak)
• Operating voltage range 8 V to 52 V
• Low R_DS(on) (0.5 Ω typ)
• Non-dissipative overcurrent protection
• Thermal shutdown protection
• Cross-conduction protection
• Compatible with standard TTL/CMOS logic levels
• Compact 20-SO package

Target Applications

• Bipolar stepper motor drivers for 3D printers, CNC machines, and robotics
• DC motor drivers for automotive actuators (e.g., mirror adjustment, seat control)
• Industrial automation: conveyor belts, pick-and-place machines
• Office equipment: printers, scanners, copiers
• Home appliances: washing machines, dishwashers
• 5G base station cooling fan drivers
• Automotive dashboard stepper motor drivers for gauge clusters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6225DTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
