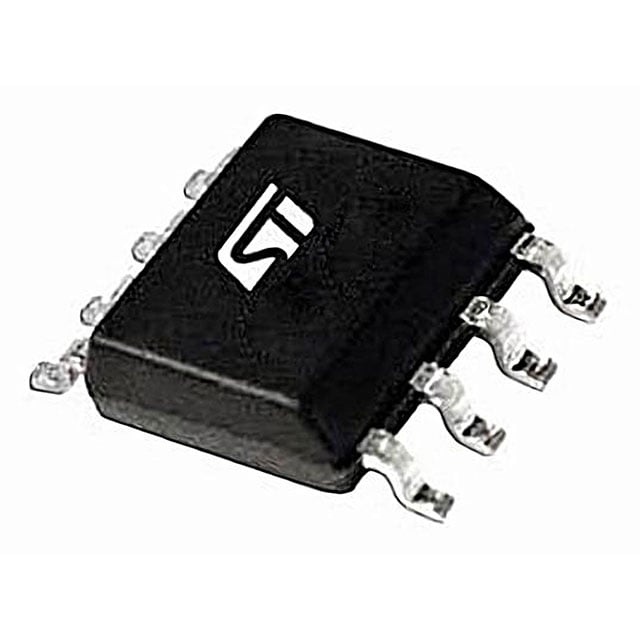

L6561D ST Power Factor Correction IC | 8-SOIC | Transition-Mode PFC, 50kHz

Product Overview

The L6561D is a high-performance transition-mode Power Factor Correction (PFC) controller from STMicroelectronics, designed to achieve near-unity power factor in AC-DC converters. Housed in an 8-SOIC package, this IC integrates advanced features to simplify design and enhance efficiency. It operates in transition mode (also known as boundary or critical conduction mode) to minimize switching losses and reduce electromagnetic interference (EMI). The L6561D is ideal for applications requiring compact size, low cost, and high power factor, such as LED lighting, battery chargers, and power adapters.

Detailed Technical Specifications

Key Features

• Transition-mode operation for low switching losses
• High power factor (>0.99) and low THD
• Internal 400V start-up circuit
• Overvoltage protection (OVP)
• Undervoltage lockout (UVLO) with hysteresis
• Low start-up and quiescent current
• Disable function for standby operation
• RoHS compliant

Target Applications

• AC-DC adapters for laptops and monitors (e.g., Dell DA90PM111)
• LED drivers for street lighting (e.g., Philips Xitanium)
• Battery chargers for power tools (e.g., DeWalt DCB115)
• Power supplies for 5G base stations (e.g., Huawei R4850G2)
• Industrial SMPS for automation equipment
• Home appliances like air conditioners and refrigerators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6561D. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
