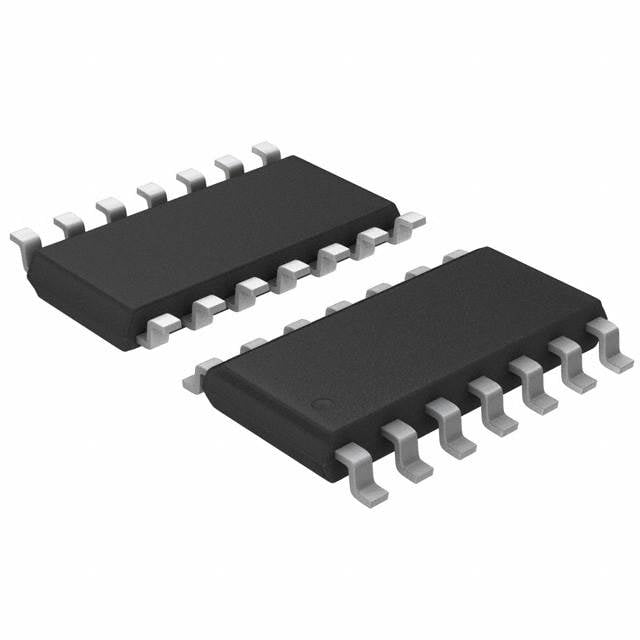

L6563A ST Power Factor Correction Controller | 14-SO | 10-300W, 50-500kHz

Product Overview

The L6563A is a highly integrated, current-mode Power Factor Correction (PFC) controller from STMicroelectronics, designed for medium-power applications. It operates in transition mode (TM) with a proprietary multiplier that ensures near-unity power factor and low total harmonic distortion (THD). The device is housed in a compact 14-SO package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Transition mode operation with proprietary multiplier for high PF and low THD
• Accurate adjustable output overvoltage protection
• Boost inductor saturation detection
• Disable function for standby mode
• Low start-up current (50 µA typ.)
• Internal 1.5 A totem-pole gate driver
• Brownout protection
• Feedback disconnection protection

Target Applications

• AC-DC adapters for notebooks and LCD TVs (e.g., 65 W adapter for Dell Latitude)
• LED lighting drivers (e.g., 100 W street light driver)
• Power supplies for 5G base stations (e.g., 200 W rectifier module)
• Industrial SMPS for automation equipment (e.g., 150 W power supply for Siemens PLC)
• Consumer electronics like gaming consoles (e.g., 300 W PSU for PlayStation 5)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6563A. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
