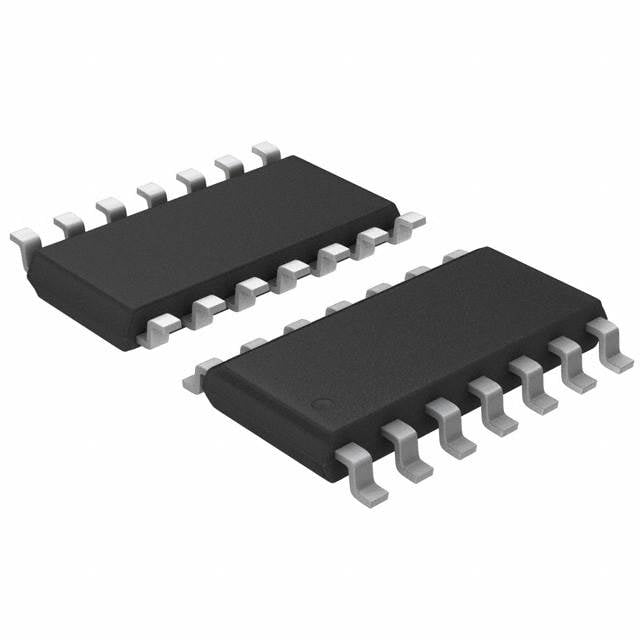

L6563ATR ST PFC Controller | 14-SOIC | Transition-Mode, 10-22V Supply

Product Overview

The L6563ATR is a transition-mode power factor correction (PFC) controller from STMicroelectronics, designed for high-performance AC-DC converters. It operates in transition mode (TM) with a proprietary multiplier that ensures near-unity power factor and low total harmonic distortion (THD). The device is housed in a compact 14-SOIC package, making it suitable for space-constrained applications. With a wide supply voltage range of 10.5V to 22V, it supports universal input (85-265VAC) and delivers efficient power conversion up to 300W.

Detailed Technical Specifications

Key Features

• Transition-mode operation for reduced switching losses
• Proprietary multiplier for low THD and high PF
• Accurate output overvoltage protection
• Boost inductor saturation detection
• Disable function for standby mode
• Low start-up and quiescent current
• Internal leading-edge blanking on current sense
• UVLO with hysteresis

Target Applications

• AC-DC adapters for laptops and gaming consoles (e.g., Dell 180W adapter)
• LED lighting drivers (e.g., Philips 100W streetlight driver)
• Industrial power supplies for 5G base stations (e.g., Huawei 5G RRU power module)
• Home appliance power supplies (e.g., Samsung refrigerator inverter board)
• Open-frame power supplies for medical equipment (e.g., GE patient monitor)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6563ATR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
