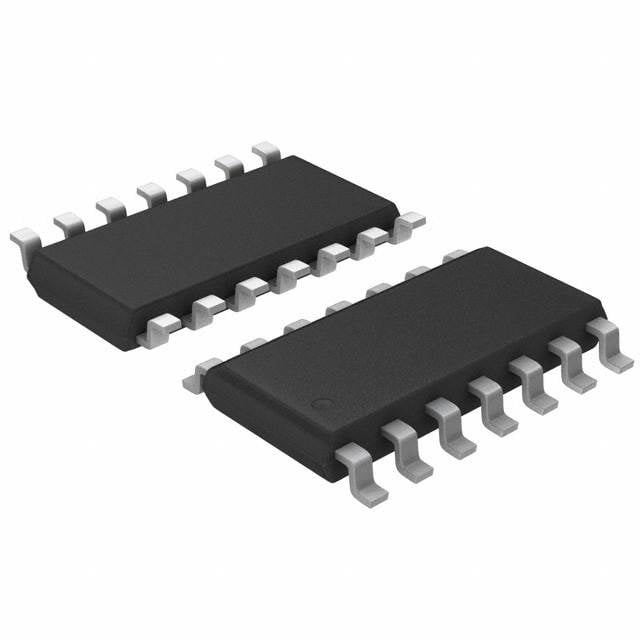

L6563TR ST Power Factor Correction IC | 14-SOIC | 10V-22V Supply, 50kHz-250kHz

Product Overview

The L6563TR is a high-performance Power Factor Correction (PFC) controller IC from STMicroelectronics, designed for transition-mode (TM) operation. It integrates advanced features to achieve near-unity power factor and low total harmonic distortion (THD) in AC-DC converters. Housed in a compact 14-SOIC package, this device is ideal for medium-power applications requiring high efficiency and compliance with stringent harmonic regulations.

Detailed Technical Specifications

Key Features

• Transition-mode (TM) PFC control for high efficiency
• Proprietary multiplier for near-unity power factor
• Low start-up current (50µA typ.)
• Accurate overvoltage protection
• Boost inductor saturation detection
• Disable function for standby operation
• Internal leading-edge blanking on current sense
• Compliant with IEC 61000-3-2 harmonic standards

Target Applications

• AC-DC adapters for 5G base stations (e.g., 48V/1kW rectifiers)
• LED lighting drivers (e.g., 150W street light power supply)
• Industrial power supplies (e.g., 300W SMPS for automation)
• Consumer electronics (e.g., 200W TV power board)
• Automotive chargers (e.g., 3.3kW onboard charger for EVs)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6563TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
