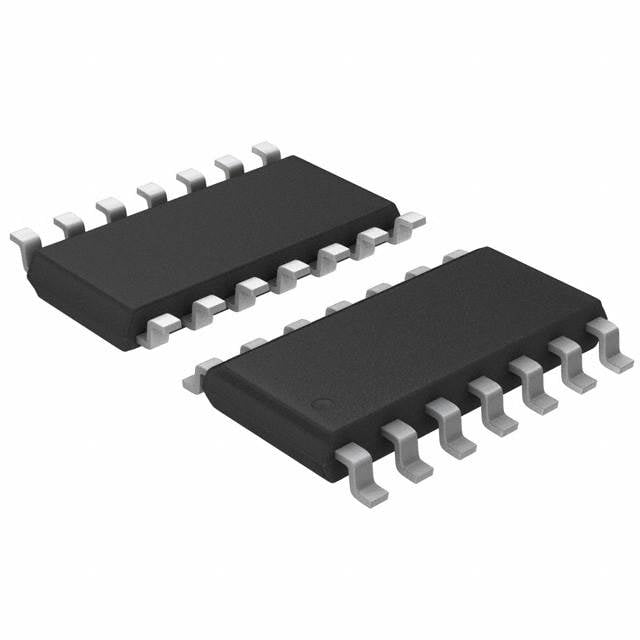

L6564H ST Power Factor Correction IC | 14-SO | 10V-22.5V Supply, 50kHz-130kHz

Product Overview

The L6564H is a highly integrated, current-mode Power Factor Correction (PFC) controller from STMicroelectronics, designed for medium-to-high power AC-DC converters. It operates in Transition Mode (TM) and features a proprietary multiplier that ensures near-unity power factor and low total harmonic distortion (THD). The device is housed in a compact 14-SO package, making it suitable for space-constrained applications such as LED lighting, adapters, and industrial power supplies.

Detailed Technical Specifications

Key Features

• Transition-mode PFC controller with proprietary multiplier for high PF and low THD
• Very low start-up current (30 µA) and low quiescent current (3.5 mA)
• High output drive capability (±600 mA) for fast MOSFET switching
• Comprehensive protection: overvoltage, brownout, feedback disconnection, and boost inductor saturation
• THD optimizer circuit to minimize line current distortion
• Internal 1.5 ms soft-start for reduced stress during startup
• External disable function for standby operation

Target Applications

• AC-DC adapters for laptops and gaming consoles (e.g., 65W USB-C PD adapter)
• LED street lighting drivers (e.g., 150W constant current driver)
• Industrial power supplies for 5G base stations (e.g., 48V/300W rectifier)
• Home appliance power boards (e.g., air conditioner inverter PFC stage)
• Battery chargers for electric vehicles (e.g., 3.3 kW on-board charger)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6564H. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

L6564H是意法半導體（ST）推出的一款高度集成的電流模式功率因數校正（PFC）控制器，專為中高功率AC-DC轉換器設計。它工作在過渡模式（TM），並採用專有乘法器，確保接近1的功率因數和低總諧波失真（THD）。該器件採用緊湊的14-SO封裝，適用於LED照明、適配器和工業電源等空間受限的應用。

詳細技術參數

核心特性

• 過渡模式PFC控制器，帶專有乘法器，實現高PF和低THD
• 極低啟動電流（30 µA）和低靜態電流（3.5 mA）
• 高輸出驅動能力（±600 mA），實現快速MOSFET開關
• 全面保護：過壓、欠壓、反饋斷路和升壓電感飽和
• THD優化電路，最小化線路電流失真
• 內部1.5 ms軟啟動，減少啟動應力
• 外部禁用功能，用於待機操作

典型應用場景

• 筆記本電腦和遊戲機的AC-DC適配器（例如65W USB-C PD適配器）
• LED路燈驅動器（例如150W恆流驅動器）
• 5G基站的工業電源（例如48V/300W整流器）
• 家用電器電源板（例如空調逆變器PFC級）
• 電動汽車電池充電器（例如3.3 kW車載充電器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 L6564H 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
