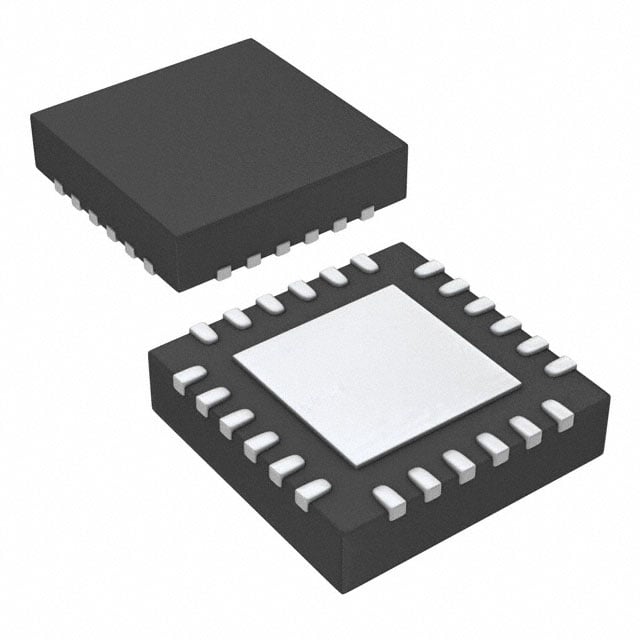

LED1642GWQTR ST LED Driver | 24-QFN | 16-Channel, 40V, PWM Dimming

Product Overview

The LED1642GWQTR is a 16-channel constant current LED driver from STMicroelectronics, designed for high-performance lighting applications. Housed in a compact 24-QFN package, it integrates advanced features such as PWM dimming, error detection, and thermal shutdown. The device supports an output current up to 40 mA per channel and operates from a supply voltage range of 3.0V to 5.5V, making it suitable for a wide variety of LED lighting systems.

Detailed Technical Specifications

Key Features

• 16 constant-current output channels with 8-bit current adjustment
• High output voltage capability up to 40V for series LED connections
• SPI interface with daisy-chain capability for multiple devices
• Integrated PWM dimming with 8-bit resolution
• Error detection for open/short LED and thermal shutdown
• Low quiescent current (typical 5 mA)
• Thermal shutdown protection
• Compact 24-QFN package for space-constrained designs

Target Applications

• Automotive lighting: dashboard backlighting, interior ambient lighting, head-up display (HUD) backlight
• Industrial control panels: indicator LEDs, status lights
• Consumer electronics: LED strips, gaming peripherals, smart home lighting
• 5G base station: status indicators, alarm lights
• Medical devices: display backlighting, surgical lighting
