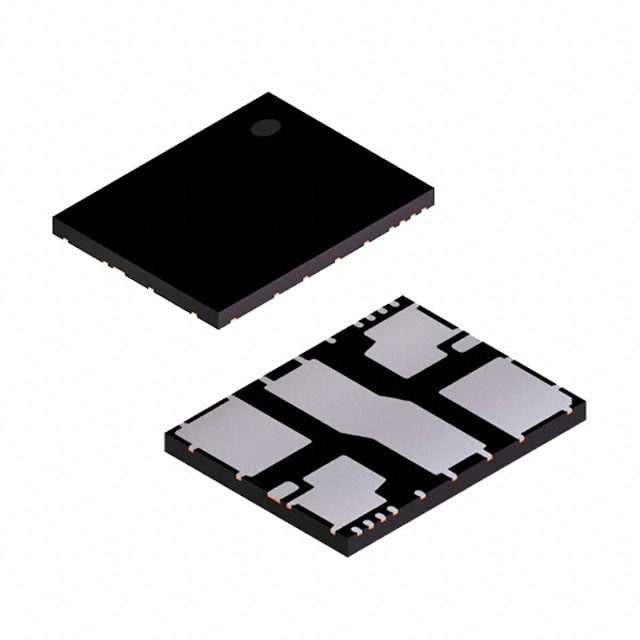

PWD13F60 ST Intelligent Power Module | 28-PowerVQFN | 600V, 13A

Product Overview

The PWD13F60 is a high-performance intelligent power module (IPM) from STMicroelectronics, designed for motor control and power conversion applications. It integrates a three-phase inverter with gate drivers and protection features in a compact 28-PowerVQFN package. This device offers a breakdown voltage of 600V and a continuous collector current of 13A, making it suitable for a wide range of industrial and consumer applications.

Detailed Technical Specifications

Key Features

• 600V/13A three-phase inverter with IGBTs and freewheeling diodes
• Integrated gate drivers with bootstrap diodes
• Under-voltage lockout (UVLO) for all channels
• Over-current protection (OCP) and over-temperature protection (OTP)
• Fault output for system monitoring
• 3.3V/5V logic compatible inputs
• Low electromagnetic interference (EMI) design
• Compact 28-PowerVQFN package for space-constrained designs

Target Applications

• Motor control for home appliances (e.g., washing machines, air conditioners, refrigerators)
• Industrial motor drives (e.g., pumps, fans, compressors)
• Power tools and garden equipment
• Automotive auxiliary systems (e.g., electric power steering, cooling fans)
• 5G base station cooling fans
• Dashboard blower motors in electric vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PWD13F60. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
