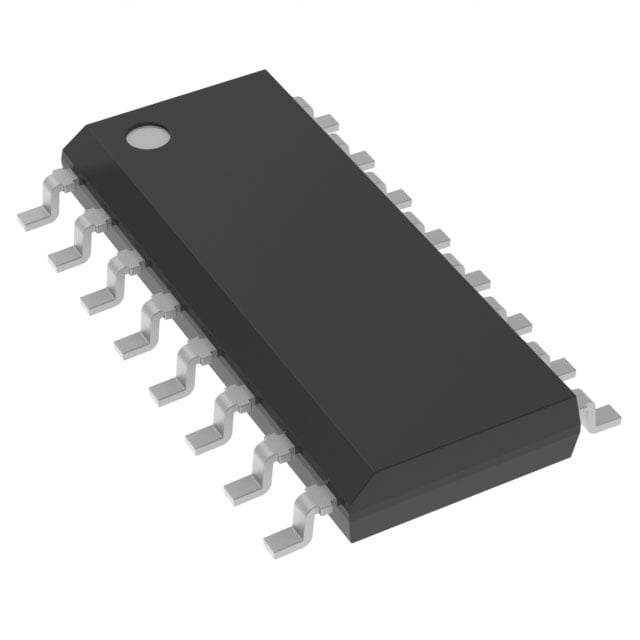

SG3524P ST PWM Controller | 16-SOIC | 8-40V, 100mA

Product Overview

The SG3524P from STMicroelectronics is a monolithic integrated circuit that contains all the control circuitry for a regulating power supply inverter or switching regulator. It is designed for pulse-width modulation (PWM) control of switching regulators, DC-DC converters, and other power conversion applications. The device operates from a supply voltage range of 8V to 40V and can deliver up to 100mA output current. Housed in a compact 16-SOIC package (0.154", 3.90mm width), it offers a complete PWM control system with on-chip reference, error amplifier, oscillator, and protection features.

Detailed Technical Specifications

Key Features

• Complete PWM power control circuitry
• Uncommitted output transistors for single-ended or push-pull operation
• On-chip 5V reference with ±1% accuracy
• Wide supply voltage range: 8V to 40V
• Oscillator frequency programmable up to 300 kHz
• Deadtime control for push-pull operation
• Soft-start capability
• Under-voltage lockout
• Low standby current

Target Applications

• Switching regulators for 5G base station power supplies
• DC-DC converters for automotive dashboard displays
• Industrial power inverters
• Battery chargers
• Telecom power modules
