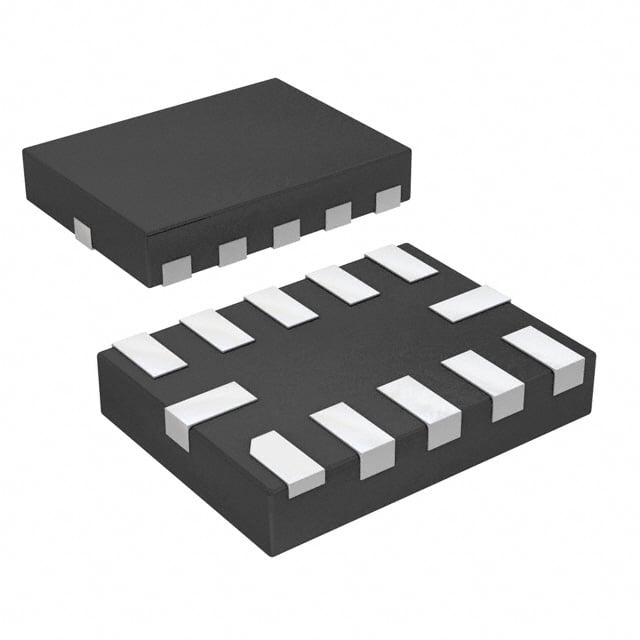

ST1PS02DQTR ST Power Management IC | 12-TQFN (1.7x2) | 1.8V-5.5V Input, 400mA Output

Product Overview

The ST1PS02DQTR is a high-efficiency, low-quiescent current step-down converter from STMicroelectronics, designed for space-constrained and battery-powered applications. Housed in a compact 12-TQFN (1.7x2 mm) package, it integrates a power switch, synchronous rectifier, and control logic to deliver up to 400 mA output current. With an input voltage range of 1.8V to 5.5V, it supports a wide variety of power sources including single-cell Li-Ion batteries and standard 3.3V/5V rails. The device features a typical quiescent current of 1 µA (typ) and offers high efficiency up to 95%, making it ideal for always-on and low-power systems.

Detailed Technical Specifications

Key Features

• Ultra-low quiescent current: 1 µA (typ) extends battery life
• High efficiency: up to 95% reduces power loss
• Wide input voltage range: 1.8V to 5.5V
• Adjustable output voltage from 0.8V to VIN
• Integrated synchronous rectifier eliminates external diode
• Small 12-TQFN package saves PCB space
• Power-good output and enable control
• Overcurrent and thermal protection

Target Applications

• 5G base station remote radio units (RRUs) – powering low-power sensors and control logic
• Automotive dashboard displays – supplying core voltage to microcontrollers and display drivers
• Wearable devices – smartwatches and fitness trackers requiring long battery life
• IoT sensor nodes – battery-powered environmental monitors
• Portable medical devices – glucose meters and pulse oximeters
• Industrial wireless transmitters – 4-20 mA loop-powered transmitters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ST1PS02DQTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ST1PS02DQTR 是意法半導體推出的一款高效率、低靜態電流降壓轉換器，專為空間受限和電池供電的應用設計。採用緊湊的 12-TQFN（1.7x2 mm）封裝，集成功率開關、同步整流器和控制邏輯，可提供高達 400 mA 的輸出電流。輸入電壓範圍為 1.8V 至 5.5V，支持多種電源，包括單節鋰離子電池和標準 3.3V/5V 電源軌。該器件典型靜態電流為 1 µA，效率高達 95%，非常適合常開和低功耗系統。

詳細技術參數

核心特性

• 超低靜態電流：1 µA（典型值），延長電池壽命
• 高效率：高達 95%，降低功耗
• 寬輸入電壓範圍：1.8V 至 5.5V
• 可調輸出電壓：0.8V 至 VIN
• 集成同步整流器，無需外部二極管
• 小型 12-TQFN 封裝，節省 PCB 空間
• 電源正常輸出和使能控制
• 過流和過熱保護

典型應用場景

• 5G 基站遠程射頻單元（RRU）——為低功耗傳感器和控制邏輯供電
• 汽車儀表盤顯示——為微控制器和顯示驅動器提供核心電壓
• 可穿戴設備——智能手錶和健身追踪器，需要長電池壽命
• 物聯網傳感器節點——電池供電的環境監測器
• 便攜式醫療設備——血糖儀和脈搏血氧儀
• 工業無線發射器——4-20 mA 迴路供電發射器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ST1PS02DQTR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
