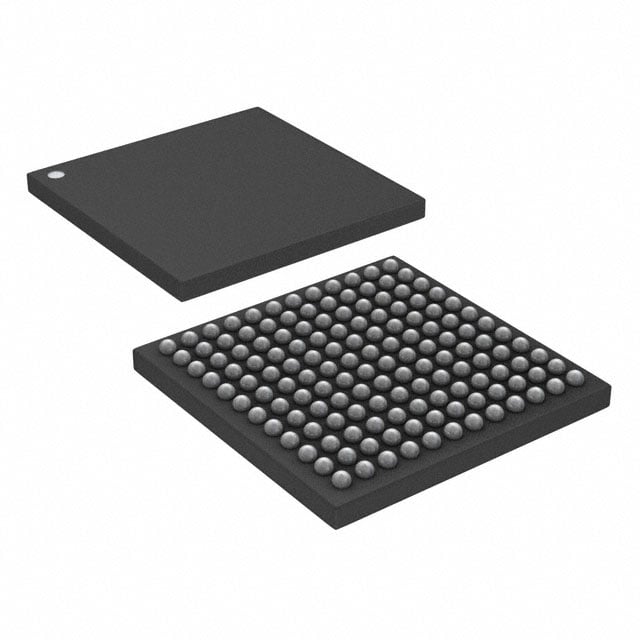

STM32F103ZGH6TR ST Microcontroller | 144-LFBGA(10x10) | 72MHz, 1MB Flash

Product Overview

The STM32F103ZGH6TR is a high-performance ARM Cortex-M3 based microcontroller from STMicroelectronics, part of the STM32F1 series. It operates at up to 72 MHz and features 1 MB of Flash memory and 128 KB of SRAM. The device is housed in a compact 144-ball LFBGA (10x10 mm) package, making it suitable for space-constrained applications. It offers a rich set of peripherals including multiple USART, SPI, I2C, USB, CAN, and 12-bit ADCs, as well as advanced timers and a real-time clock.

Detailed Technical Specifications

Key Features

• ARM Cortex-M3 core with single-cycle multiply and hardware divide
• Up to 72 MHz operation with 1.25 DMIPS/MHz
• 1 MB Flash with read-while-write support
• 128 KB SRAM
• Flexible static memory controller (FSMC) for external memory
• Two 12-bit DACs and three 12-bit ADCs
• Advanced timers for motor control and digital power conversion
• Up to 112 fast I/O ports
• USB 2.0 full-speed device/host/OTG
• Two CAN 2.0B active interfaces
• Real-time clock with sub-second accuracy
• Low-power modes: Sleep, Stop, Standby
• Operating temperature range: -40°C to +85°C

Target Applications

The STM32F103ZGH6TR is ideal for a wide range of applications including:

• Industrial control systems (e.g., PLCs, motor drives)
• 5G base station control and monitoring
• Automotive aftermarket (e.g., dashboard controllers, infotainment)
• Medical devices (e.g., patient monitors, diagnostic equipment)
• Consumer electronics (e.g., smart home hubs, gaming peripherals)
• IoT gateways and edge computing devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F103ZGH6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
