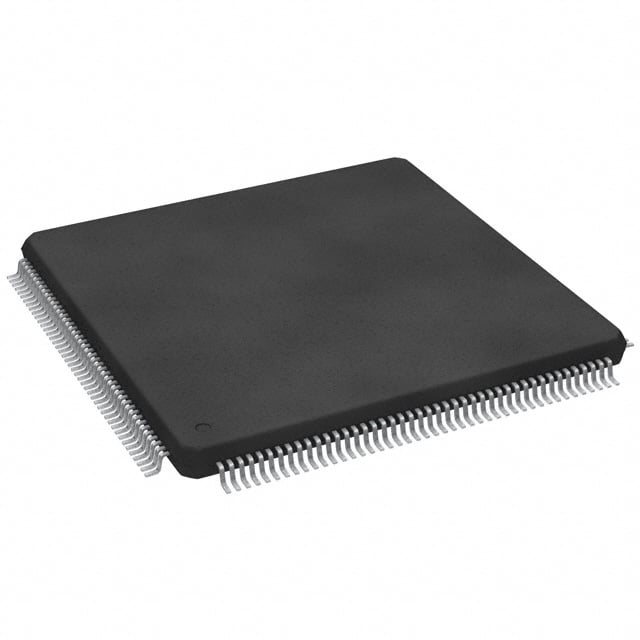

STM32F429IET6 ST Microcontrollers MCU | 176-LQFP (24X24) | 2MB Flash, 256KB RAM

Product Overview

The STM32F429IET6 is a high-performance ARM Cortex-M4 based MCU from STMicroelectronics, featuring a 32-bit RISC core operating at up to 180 MHz. It integrates 2 MB of Flash memory and 256 KB of SRAM, along with a rich set of peripherals including TFT-LCD controller, Ethernet, USB OTG HS/FS, and advanced connectivity. Housed in a 176-pin LQFP package (24x24 mm), it is ideal for demanding applications requiring high computational power and extensive I/O.

Detailed Technical Specifications

Key Features

• ARM Cortex-M4 core with DSP instructions and floating-point unit (FPU)
• 2 MB Flash with read-while-write support
• 256 KB SRAM (including 64 KB CCM data RAM)
• Chrom-ART Accelerator for advanced graphics
• Hardware JPEG codec
• True random number generator (TRNG)
• Up to 140 I/Os with interrupt capability
• Dual DMA controllers with FIFO
• 12-bit ADC with 2.4 MSPS
• Ethernet MAC with IEEE 1588 PTP
• USB OTG HS/FS with on-chip PHY
• Camera interface (8-bit parallel)
• Up to 17 timers
• 96-bit unique ID

Target Applications

• Industrial control systems (e.g., PLC, motor drives)
• Building automation (e.g., HVAC controllers)
• Medical equipment (e.g., patient monitors)
• Consumer electronics (e.g., smart home hubs)
• Automotive aftermarket (e.g., dashboard displays)
• 5G base station control modules
• Human-machine interface (HMI) with TFT-LCD
• IoT gateways with Ethernet connectivity

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F429IET6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32F429IET6 是意法半導體推出的高性能 ARM Cortex-M4 微控制器，採用 32 位 RISC 內核，最高工作頻率 180 MHz。它集成了 2 MB 閃存和 256 KB SRAM，並配備豐富的外設，包括 TFT-LCD 控制器、以太網、USB OTG HS/FS 以及先進的連接功能。採用 176 引腳 LQFP 封裝（24x24 mm），適用於需要高計算能力和大量 I/O 的苛刻應用。

詳細技術參數

核心特性

• ARM Cortex-M4 內核，帶 DSP 指令和浮點運算單元 (FPU)
• 2 MB 閃存，支持讀-寫-同時
• 256 KB SRAM（包括 64 KB CCM 數據 RAM）
• Chrom-ART 加速器，用於高級圖形處理
• 硬件 JPEG 編解碼器
• 真隨機數生成器 (TRNG)
• 最多 140 個 I/O，支持中斷
• 雙 DMA 控制器，帶 FIFO
• 12 位 ADC，2.4 MSPS
• 以太網 MAC，支持 IEEE 1588 PTP
• USB OTG HS/FS，帶片上 PHY
• 攝像頭接口（8 位並行）
• 最多 17 個定時器
• 96 位唯一 ID

典型應用場景

• 工業控制系統（例如 PLC、電機驅動）
• 樓宇自動化（例如 HVAC 控制器）
• 醫療設備（例如病人監護儀）
• 消費電子（例如智能家居中樞）
• 汽車後市場（例如儀表盤顯示）
• 5G 基站控制模塊
• 帶 TFT-LCD 的人機界面 (HMI)
• 帶以太網連接的物聯網網關

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32F429IET6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
