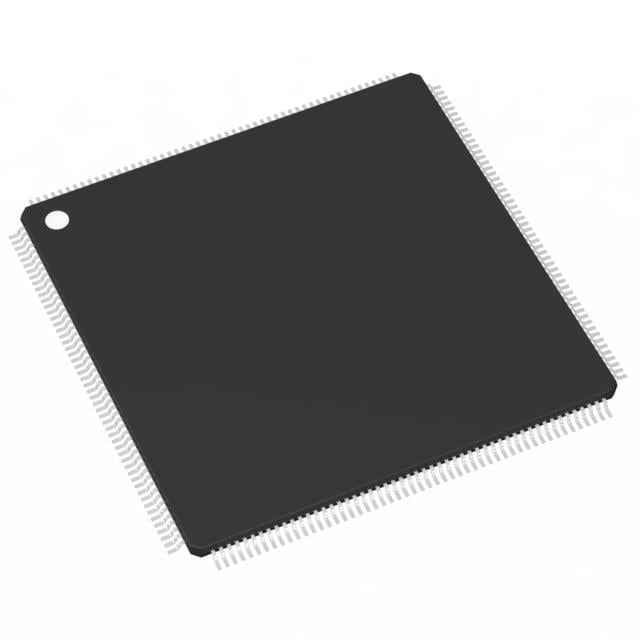

STM32F765BIT6 ST Microcontrollers | 208-LQFP (28x28) | 2MB Flash, 512KB SRAM

Product Overview

The STM32F765BIT6 is a high-performance ARM Cortex-M7 based microcontroller from STMicroelectronics, operating at up to 216 MHz. It features 2 MB of Flash memory and 512 KB of SRAM, making it suitable for demanding applications requiring intensive computation and real-time processing. The device is housed in a 208-pin LQFP package with a 28x28 mm footprint, offering a rich set of peripherals including multiple communication interfaces, advanced analog features, and cryptographic acceleration.

Detailed Technical Specifications

Key Features

• High-performance ARM Cortex-M7 core with single-precision FPU and DSP instructions
• 2 MB dual-bank Flash memory for read-while-write capability
• 512 KB SRAM with 128 KB of tightly coupled memory (TCM)
• Rich connectivity: Ethernet MAC, USB OTG HS/FS, CAN FD, and more
• Advanced security: hardware cryptographic accelerator, true random number generator (TRNG), and secure boot
• 12-bit ADCs with up to 24 channels, 2 DACs, and analog comparators
• Up to 22 timers including motor control timers and quadrature encoder interfaces
• Chrom-ART Accelerator for enhanced graphics performance
• Low-power modes: Sleep, Stop, Standby

Target Applications

• Industrial automation: PLCs, motor drives, and robotics controllers
• 5G base station control and monitoring units
• Automotive: advanced driver-assistance systems (ADAS), dashboard controllers, and infotainment systems
• Medical devices: patient monitoring, diagnostic equipment
• Consumer electronics: high-end smart home hubs, audio processing
• IoT gateways requiring edge computing and security

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F765BIT6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32F765BIT6 是意法半導體推出的一款基於 ARM Cortex-M7 內核的高性能微控制器，最高工作頻率可達 216 MHz。它配備了 2 MB 的 Flash 存儲器和 512 KB 的 SRAM，適用於需要密集計算和實時處理的應用。該器件採用 208 引腳 LQFP 封裝，尺寸為 28x28 mm，提供豐富的外設，包括多種通信接口、先進的模擬功能和加密加速器。

詳細技術參數

核心特性

• 高性能 ARM Cortex-M7 內核，帶單精度浮點運算單元和 DSP 指令
• 2 MB 雙 Bank Flash 存儲器，支持讀寫同時操作
• 512 KB SRAM，其中 128 KB 為緊耦合內存 (TCM)
• 豐富的連接性：以太網 MAC、USB OTG HS/FS、CAN FD 等
• 高級安全性：硬件加密加速器、真隨機數發生器 (TRNG) 和安全啟動
• 12 位 ADC，最多 24 通道；2 個 DAC 和模擬比較器
• 最多 22 個定時器，包括電機控制定時器和正交編碼器接口
• Chrom-ART 加速器，增強圖形性能
• 低功耗模式：睡眠、停止、待機

典型應用場景

• 工業自動化：PLC、電機驅動和機器人控制器
• 5G 基站控制與監控單元
• 汽車電子：高級駕駛輔助系統 (ADAS)、儀表板控制器和信息娛樂系統
• 醫療設備：病人監護、診斷設備
• 消費電子：高端智能家居中樞、音頻處理
• 需要邊緣計算和安全的物聯網網關

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32F765BIT6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
