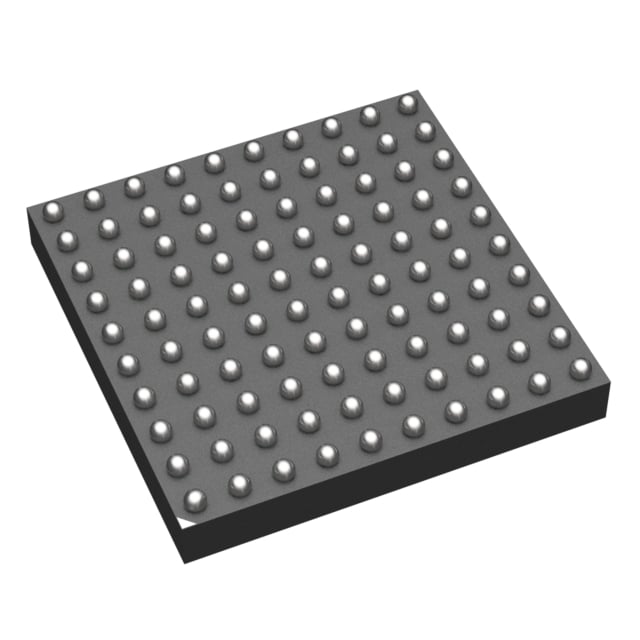

STM32H7A3VGH6Q ST Microcontrollers | 100-TFBGA (8x8) | 280MHz Cortex-M7, 2MB Flash

Product Overview

The STM32H7A3VGH6Q is a high-performance microcontroller from STMicroelectronics' STM32H7 series, featuring an Arm Cortex-M7 core running at up to 280 MHz. It is housed in a compact 100-TFBGA (8x8 mm) package, making it ideal for space-constrained applications requiring advanced processing capabilities. This device integrates up to 2 MB of Flash memory and 1 MB of SRAM, along with a rich set of peripherals for connectivity, graphics, and security.

Detailed Technical Specifications

Key Features

• High-performance Arm Cortex-M7 core with double-precision FPU and L1 cache
• Rich connectivity: USB OTG HS/FS, Ethernet MAC, dual CAN FD
• Advanced security: TrustZone, secure boot, cryptographic accelerators
• Graphics support: Chrom-ART Accelerator, LCD-TFT controller, MIPI DSI
• Low-power modes: Sleep, Stop, Standby with VBAT backup
• Extensive analog integration: ADCs, DACs, comparators, operational amplifiers
• Flexible memory mapping with dual-bank Flash and OSPI interface

Target Applications

• Industrial control: PLCs, motor drives, robotics controllers
• Smart home: IoT gateways, smart speakers, home automation hubs
• Automotive: In-vehicle infotainment, ADAS sensor fusion, telematics
• Medical: Patient monitoring devices, portable diagnostic equipment
• Consumer electronics: High-end wearables, AR/VR headsets, gaming peripherals
• Networking: 5G small cell base stations, edge computing nodes
• Display solutions: HMI panels, dashboard clusters, digital signage

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32H7A3VGH6Q. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32H7A3VGH6Q 是意法半導體 STM32H7 系列的高性能微控制器，採用 Arm Cortex-M7 內核，最高運行頻率 280 MHz。它採用緊湊的 100-TFBGA（8x8 mm）封裝，非常適合需要先進處理能力的空間受限應用。該器件集成了高達 2 MB 的快閃記憶體和 1 MB 的 SRAM，以及豐富的外設，用於連接、圖形和安全功能。

詳細技術參數

核心特性

• 高性能 Arm Cortex-M7 內核，帶雙精度 FPU 和 L1 緩存
• 豐富的連接性：USB OTG HS/FS、以太網 MAC、雙 CAN FD
• 高級安全：TrustZone、安全啟動、加密加速器
• 圖形支持：Chrom-ART 加速器、LCD-TFT 控制器、MIPI DSI
• 低功耗模式：睡眠、停止、待機（帶 VBAT 備份）
• 廣泛的模擬集成：ADC、DAC、比較器、運算放大器
• 靈活的存儲映射：雙 Bank 快閃記憶體和 OSPI 接口

典型應用場景

• 工業控制：PLC、電機驅動、機器人控制器
• 智能家居：物聯網網關、智能音箱、家庭自動化中心
• 汽車：車載信息娛樂、ADAS 傳感器融合、遠程信息處理
• 醫療：病人監護設備、便攜式診斷儀器
• 消費電子：高端可穿戴設備、AR/VR 頭顯、遊戲外設
• 網絡：5G 小型基站、邊緣計算節點
• 顯示解決方案：人機界面面板、儀表盤集群、數字標牌

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32H7A3VGH6Q 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
