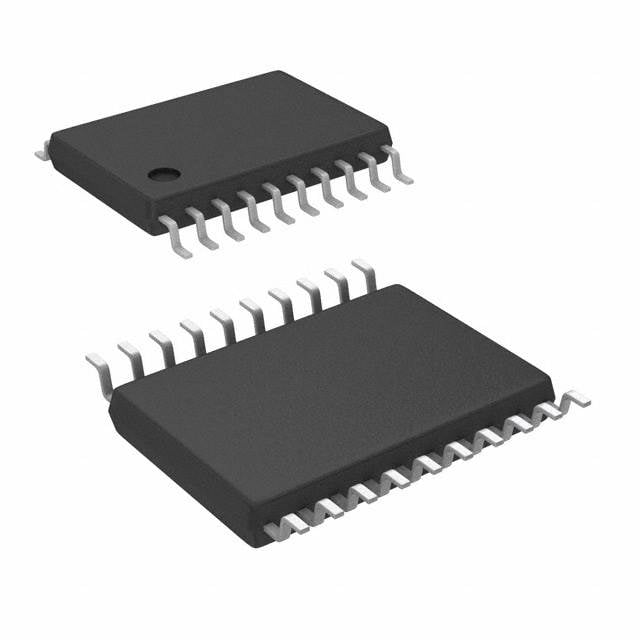

STM8L101F2P6 ST Microcontroller | 20-TSSOP | 8-bit, 4KB Flash, 1KB RAM

Product Overview

The STM8L101F2P6 is an ultra-low-power 8-bit microcontroller from STMicroelectronics, part of the STM8L101xx family. It features an advanced STM8 core with a 16 MHz CPU clock, 4 KB of Flash program memory, 1 KB of RAM, and 256 bytes of EEPROM. Housed in a compact 20-pin TSSOP package, it is designed for cost-sensitive and power-constrained applications requiring high performance and reliability.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.3 µA in Halt mode, 1 µA in Active-halt mode
• Fast wake-up from low-power modes (4 µs)
• Embedded single-wire debug module (SWIM)
• Up to 18 I/Os with interrupt capability
• Integrated 16 MHz RC oscillator with ±1% accuracy
• True data EEPROM with up to 100k write/erase cycles
• Clock security system (CSS) for fail-safe operation

Target Applications

The STM8L101F2P6 is ideal for a wide range of low-power and cost-sensitive applications, including:

• Portable medical devices (e.g., blood glucose meters, thermometers)
• Smart sensors and IoT endpoints (e.g., temperature/humidity sensors)
• Battery-powered consumer electronics (e.g., remote controls, toys)
• Industrial control (e.g., simple motor control, lighting systems)
• Automotive body electronics (e.g., window lift, seat control modules)
• 5G base station monitoring and control (e.g., fan speed control, power management)
• Dashboard displays and HMI controllers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L101F2P6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8L101F2P6 是意法半導體（STMicroelectronics）推出的一款超低功耗8位微控制器，屬於 STM8L101xx 系列。它採用先進的 STM8 內核，CPU 時鐘最高可達 16 MHz，內置 4 KB Flash 程序存儲器、1 KB RAM 和 256 字節 EEPROM。器件採用緊湊的 20 引腳 TSSOP 封裝，專為成本敏感且功耗受限的應用設計，兼具高性能和高可靠性。

詳細技術參數

核心特性

• 超低功耗：Halt 模式下 0.3 µA，Active-halt 模式下 1 µA
• 從低功耗模式快速喚醒（4 µs）
• 內置單線調試模塊（SWIM）
• 最多 18 個 I/O，支持中斷
• 集成 16 MHz RC 振盪器，精度 ±1%
• 真正的數據 EEPROM，支持高達 10 萬次擦寫
• 時鐘安全系統（CSS），確保故障安全運行

典型應用場景

STM8L101F2P6 適用於多種低功耗和成本敏感的應用，包括：

• 便攜式醫療設備（如血糖儀、體溫計）
• 智能傳感器和 IoT 終端（如溫濕度傳感器）
• 電池供電的消費電子產品（如遙控器、玩具）
• 工業控制（如簡單電機控制、照明系統）
• 汽車車身電子（如車窗升降、座椅控制模塊）
• 5G 基站監控與控制（如風扇轉速控制、電源管理）
• 儀表盤顯示與人機界面控制器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8L101F2P6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
