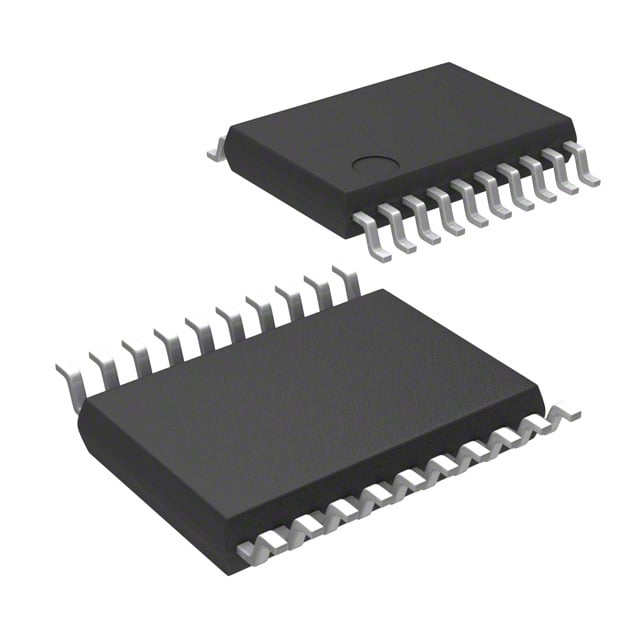

STM8S003F3P6TR ST Microcontroller | 20-TSSOP | 8-bit, 16 MHz, 8 KB Flash

Product Overview

The STM8S003F3P6TR is an 8-bit microcontroller from STMicroelectronics, featuring a high-performance STM8 core operating at up to 16 MHz. It is housed in a compact 20-pin TSSOP package, making it ideal for space-constrained applications. With 8 KB of Flash memory, 1 KB of RAM, and 128 bytes of EEPROM, this device offers a balanced combination of performance and memory for cost-sensitive embedded systems.

Detailed Technical Specifications

Key Features

• Advanced STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug module (SWIM)
• Low power modes: Halt, Active-halt, Wait
• Integrated watchdog timer and clock security system
• Up to 16 I/Os with programmable pull-up and interrupt capability
• 10-bit ADC with up to 5 channels
• Communication interfaces: SPI, I2C, UART
• Robust ESD protection and EMI immunity

Target Applications

The STM8S003F3P6TR is suitable for a wide range of applications including:

• Home appliances: washing machines, microwave ovens, air conditioners
• Industrial control: motor control, sensor interfaces, PLC modules
• Automotive: body control modules, dashboard controllers, lighting systems
• Consumer electronics: remote controls, toys, power tools
• IoT edge nodes: smart sensors, data loggers
• 5G base station: power management, monitoring subsystems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S003F3P6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8S003F3P6TR 是意法半導體推出的8位微控制器，採用高性能 STM8 內核，最高工作頻率16 MHz。器件採用緊湊的20引腳 TSSOP 封裝，適合空間受限的應用。具有8 KB Flash、1 KB RAM 和128字節 EEPROM，為成本敏感的嵌入式系統提供了性能與存儲的平衡組合。

詳細技術參數

核心特性

• 先進的 STM8 內核，哈佛架構，3級流水線
• 16 MHz 下最高 16 MIPS 吞吐量
• 嵌入式單線調試模塊 (SWIM)
• 低功耗模式：停機、主動停機、等待
• 集成看門狗定時器和時鐘安全系統
• 最多 16 個 I/O，可編程上拉和中斷功能
• 10位 ADC，最多 5 通道
• 通信接口：SPI, I2C, UART
• 強大的 ESD 保護和 EMI 抗擾度

典型應用場景

STM8S003F3P6TR 適用於多種應用，包括：

• 家用電器：洗衣機、微波爐、空調
• 工業控制：電機控制、傳感器接口、PLC 模塊
• 汽車電子：車身控制模塊、儀表板控制器、照明系統
• 消費電子：遙控器、玩具、電動工具
• 物聯網邊緣節點：智能傳感器、數據記錄器
• 5G 基站：電源管理、監控子系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8S003F3P6TR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
