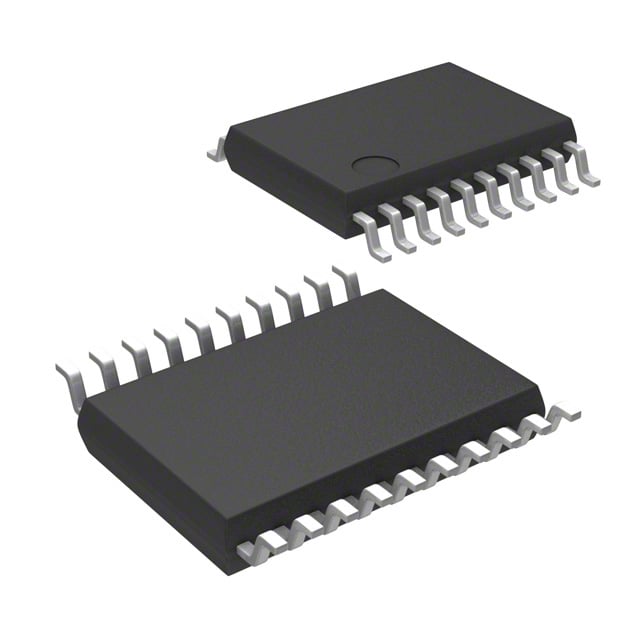

STM8S903F3P6TR ST Microcontroller | 20-TSSOP | 8-bit, 8KB Flash, 16MHz

Product Overview

The STM8S903F3P6TR is an 8-bit microcontroller from STMicroelectronics' STM8S series, designed for cost-sensitive applications requiring high performance and robustness. It features an advanced STM8 core operating at up to 16 MHz, 8 KB of Flash memory, 1 KB of RAM, and 640 bytes of EEPROM. Housed in a compact 20-pin TSSOP package, it offers a rich set of peripherals including a 10-bit ADC, timers, UART, SPI, and I2C interfaces. This device is ideal for industrial control, automotive, and consumer electronics applications.

Detailed Technical Specifications

Key Features

• High-performance STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug module (SWIM)
• Clock sources: internal 16 MHz RC, external crystal, or external clock
• Reset circuit with power-on reset (POR), brown-out reset (BOR), and watchdog
• Low power modes: Wait, Active Halt, Halt
• Up to 16 I/Os with programmable pull-up and interrupt capability
• 10-bit ADC with analog watchdog
• Two timers: 16-bit general-purpose timer with PWM, 8-bit basic timer
• UART with synchronous mode, SPI, and I2C interfaces
• Up to 32 interrupt vectors

Target Applications

The STM8S903F3P6TR is suitable for a wide range of applications including:

• Industrial control: PLCs, motor control, sensor interfaces
• Automotive: body control modules, lighting, window lift
• Consumer electronics: remote controls, toys, small appliances
• Smart home: thermostats, smart locks, lighting controllers
• 5G base station: power management, fan control
• Dashboard: instrument cluster, HMI control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S903F3P6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
