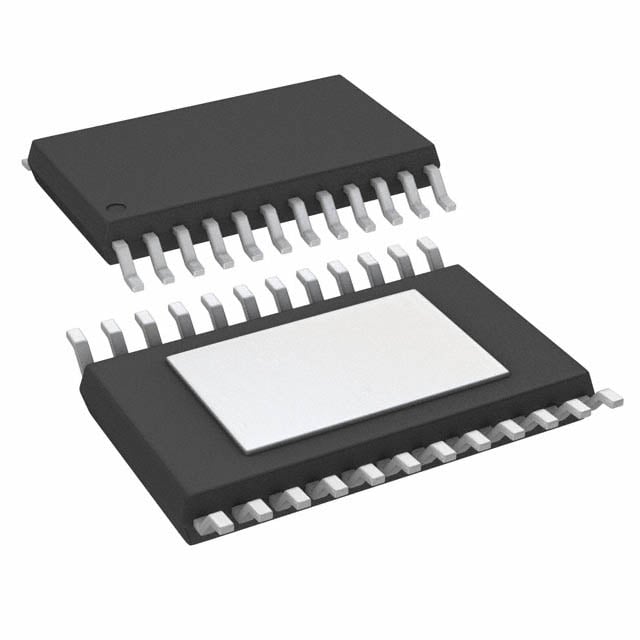

STP16CPC26XTR ST LED Driver IC | 24-TSSOP-EP | 16-Ch, 5.5V, 40mA

Product Overview

The STP16CPC26XTR is a monolithic, low-voltage, 16-bit constant current LED sink driver manufactured by STMicroelectronics. It is designed to drive LEDs in display and lighting applications, offering high precision and flexibility. The device integrates a 16-bit shift register, data latches, and constant current sinks, enabling easy control via a serial interface. With a wide output current range and thermal shutdown protection, it is suitable for demanding environments.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Output current programmable via external resistor
• 3-wire serial interface (SDI, CLK, LE)
• Output current accuracy: ±1% (typical)
• Thermal shutdown protection
• Output open and short detection
• Low voltage operation (3.0V to 5.5V)
• High clock frequency up to 30 MHz
• Available in 24-TSSOP-EP package with exposed pad for improved thermal dissipation

Target Applications

• LED displays and signage (e.g., indoor/outdoor billboards, scoreboards)
• Automotive lighting (e.g., dashboard indicators, interior ambient lighting)
• Industrial control panels (e.g., PLC indicator lights, HMI backlighting)
• 5G base station status indicators (e.g., LED arrays for system status)
• Consumer electronics (e.g., smart home devices, gaming peripherals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STP16CPC26XTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
