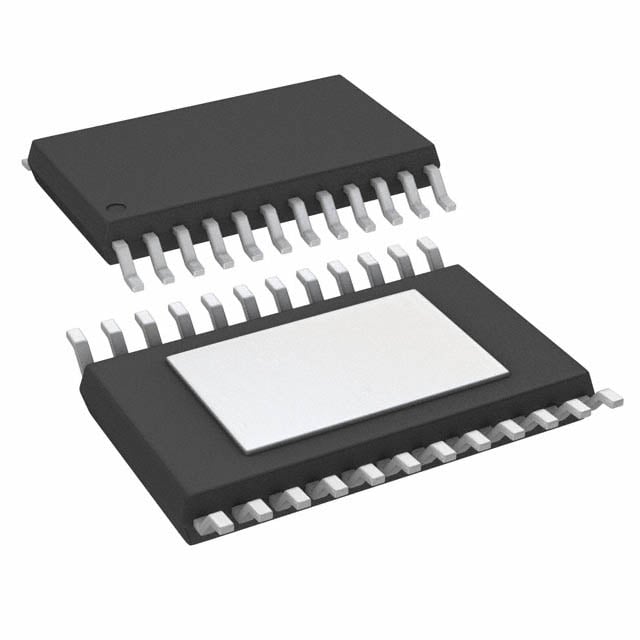

STP16DP05XTTR ST LED Driver | 24-TSSOP-EP | 16-bit, 5V, 30mA

Product Overview

The STP16DP05XTTR is a monolithic, low-voltage, 16-bit constant current LED sink driver manufactured by STMicroelectronics. It is designed to drive LEDs with a constant current of up to 30 mA per channel, operating from a supply voltage of 3V to 5.5V. The device features a serial data input and output, making it suitable for daisy-chaining in applications requiring multiple drivers. The 24-TSSOP-EP package with exposed pad enhances thermal dissipation, ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Output current programmable via external resistor
• 3V to 5.5V supply voltage range
• 30 MHz clock frequency for high-speed data transfer
• Built-in error detection (open LED, short LED, overtemperature)
• Thermal shutdown protection
• Daisy-chainable serial interface
• Exposed pad for improved thermal performance

Target Applications

• 5G base station status indicators
• Automotive dashboard backlighting
• Industrial control panel LED displays
• LED signage and marquee displays
• General-purpose constant current LED driving
