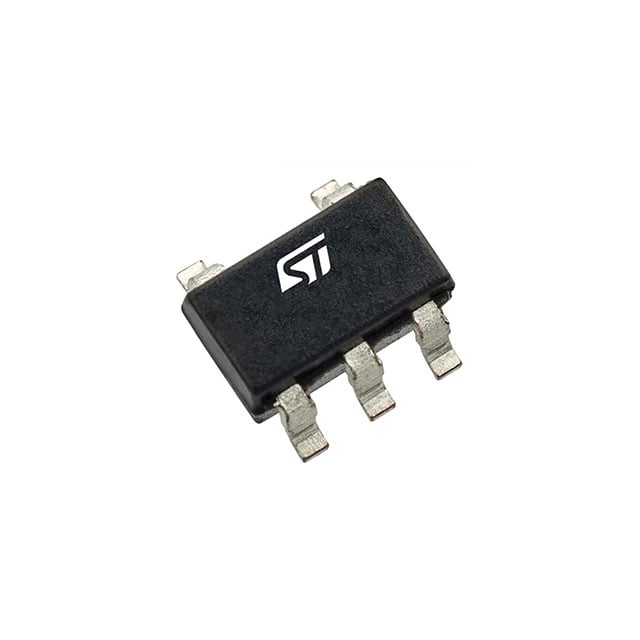

STWD100YNWWY3F ST Watchdog Timer | SOT-23-5 | 1.6s Timeout, 2.7-5.5V

Product Overview

The STWD100YNWWY3F is a standalone watchdog timer from STMicroelectronics, designed to monitor system operation and reset the microcontroller if it fails to strobe within a preset timeout period. Housed in a compact SOT-23-5 package, it ensures reliable operation in harsh environments with a wide supply voltage range of 2.7V to 5.5V. The device features a fixed timeout of 1.6 seconds (typical) and an active-low, open-drain reset output. Its low power consumption (typically 6µA) makes it ideal for battery-powered applications.

Detailed Technical Specifications

Key Features

• Low supply current: 6µA typical
• Wide operating voltage range: 2.7V to 5.5V
• Fixed watchdog timeout: 1.6s
• Open-drain active-low reset output
• Guaranteed reset valid down to VCC = 1.0V
• No external components required
• Compact SOT-23-5 package

Target Applications

• 5G base station control boards
• Automotive dashboard ECUs
• Industrial PLCs and motor drives
• Medical monitoring devices
• Battery-powered IoT sensors
• Portable consumer electronics
