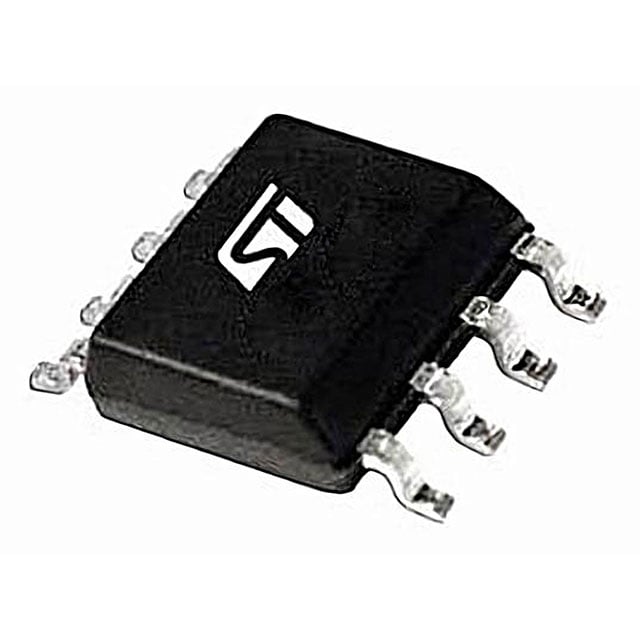

UC3845BD1013TR ST PWM Controller | 8-SOIC | 48V, 1A, 275kHz

Product Overview

The UC3845BD1013TR from STMicroelectronics is a high-performance current-mode PWM controller designed for off-line and DC-to-DC converter applications. It features low startup current, trimmed oscillator discharge current, and a precision reference. The device operates at a fixed frequency of up to 275 kHz and includes under-voltage lockout with hysteresis, pulse-by-pulse current limiting, and a totem-pole output stage capable of driving power MOSFETs directly. Housed in an 8-SOIC package, it is ideal for compact power supply designs.

Detailed Technical Specifications

Key Features

• Current-mode control with automatic feed-forward
• Low startup current (0.5 mA typical)
• Trimmed oscillator discharge current for precise frequency control
• Under-voltage lockout with hysteresis (8.4V/7.6V)
• Pulse-by-pulse current limiting
• Totem-pole output stage with high peak current (1A)
• Internal 5V reference with 2% tolerance
• Shutdown capability via external control

Target Applications

• Off-line AC-DC power supplies for 5G base stations
• DC-DC converters for automotive dashboard systems
• Battery chargers for industrial equipment
• Power adapters for consumer electronics
• LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC3845BD1013TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
