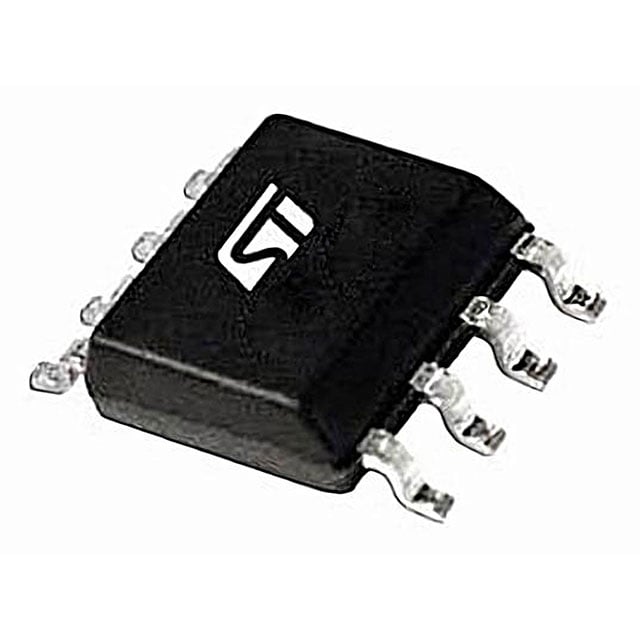

VK05CFLTR-E ST ESD Protection Diode | 8-SOIC | 5V, 0.5pF

Product Overview

The VK05CFLTR-E from STMicroelectronics is a high-performance ESD protection diode designed to safeguard sensitive electronic circuits from electrostatic discharges. Housed in an 8-SOIC (0.154", 3.90mm width) package, this device offers ultra-low capacitance and low leakage current, making it ideal for high-speed data lines. It provides robust protection against IEC 61000-4-2 ESD strikes up to ±30 kV (contact) and ±30 kV (air), ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Ultra-low capacitance: 0.5 pF typical, minimizes signal distortion for high-speed interfaces.
• Low leakage current: 0.1 µA max, preserving battery life in portable devices.
• High ESD robustness: ±30 kV contact and air discharge per IEC 61000-4-2.
• Wide operating temperature range: -55°C to +150°C, suitable for harsh environments.
• Small footprint: 8-SOIC package saves board space.
• RoHS compliant and halogen-free.

Target Applications

• 5G base stations: Protects high-speed data lines (e.g., USB 3.0, HDMI 2.0) from ESD.
• Automotive infotainment systems: Safeguards CAN bus and LVDS interfaces in dashboards.
• Industrial automation: Protects RS-485 and Ethernet ports in PLCs.
• Consumer electronics: Used in smartphones, tablets, and laptops for USB-C and HDMI ports.
• Medical devices: Ensures reliability of patient monitoring equipment.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for VK05CFLTR-E. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
