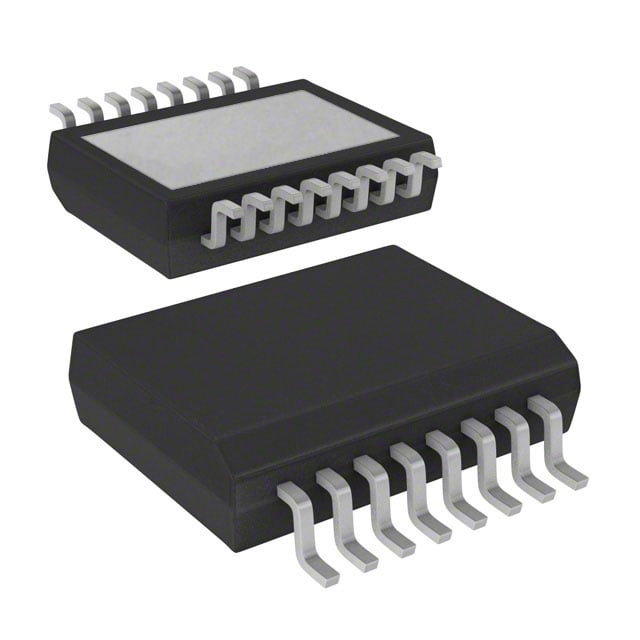

VND7020AJTR ST Double High-Side Driver | PowerSSO-16 | 2x20mΩ, 6-36V

Product Overview

The VND7020AJTR is a monolithic double high-side driver manufactured by STMicroelectronics, designed for driving resistive, inductive, and capacitive loads. It features two independent channels with a typical on-resistance of 20mΩ per channel, operating from a 6V to 36V supply voltage. The device is housed in a compact PowerSSO-16 package, offering excellent thermal performance and space savings. It includes advanced protection features such as overcurrent, overtemperature, and load dump protection, making it ideal for automotive and industrial applications.

Detailed Technical Specifications

Key Features

• Dual high-side driver with 20mΩ Rds(on) per channel
• Wide supply voltage range: 6V to 36V
• Integrated protection: overcurrent, overtemperature, load dump, reverse battery
• Diagnostic output for fault detection
• Low quiescent current in standby mode
• Compliant with automotive AEC-Q100 standard

Target Applications

• Automotive: 5G base station power distribution, dashboard lighting, seat control modules, HVAC actuators
• Industrial: PLC output modules, motor control, solenoid drivers
• Consumer: Smart home lighting, power management for IoT devices
