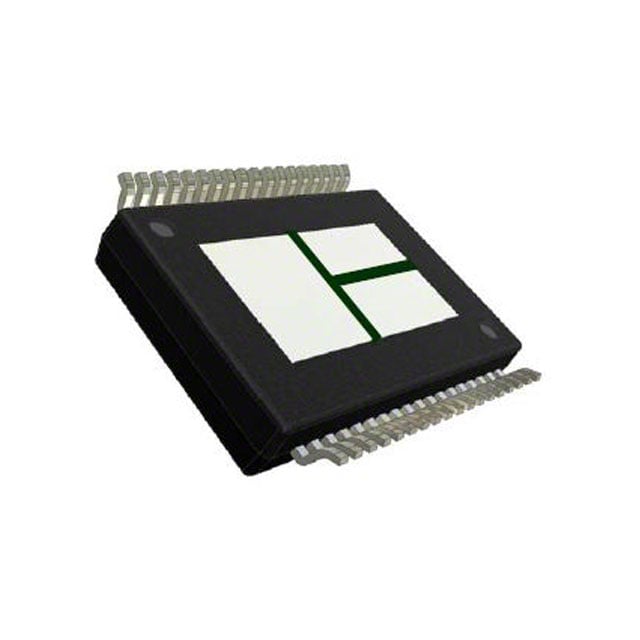

VNH5180ATR-E ST Motor Driver | PowerSSO-36 TP | 8A, 41V

Product Overview

The VNH5180ATR-E is a fully integrated H-bridge motor driver from STMicroelectronics, designed for high-current automotive and industrial applications. It features a PowerSSO-36 TP package, providing excellent thermal performance and compact footprint. The device integrates a dual monolithic high-side driver and two low-side switches with an advanced PWM current control, enabling precise motor speed and torque management.

Detailed Technical Specifications

Key Features

• Integrated H-bridge with high-side and low-side drivers
• PWM current control with adjustable frequency
• Diagnostic functions (SPI interface)
• Low standby current
• Protection against short circuit, thermal shutdown, and under-voltage lockout
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: Electric power steering, HVAC blowers, fuel pumps, window lift, seat adjustment
• Industrial: Robotics, conveyor systems, CNC machines, valve actuators
• Consumer: Home appliances (washing machines, dishwashers), power tools
• Specific examples: 5G base station cooling fans, dashboard motor control, electric parking brake

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for VNH5180ATR-E. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
