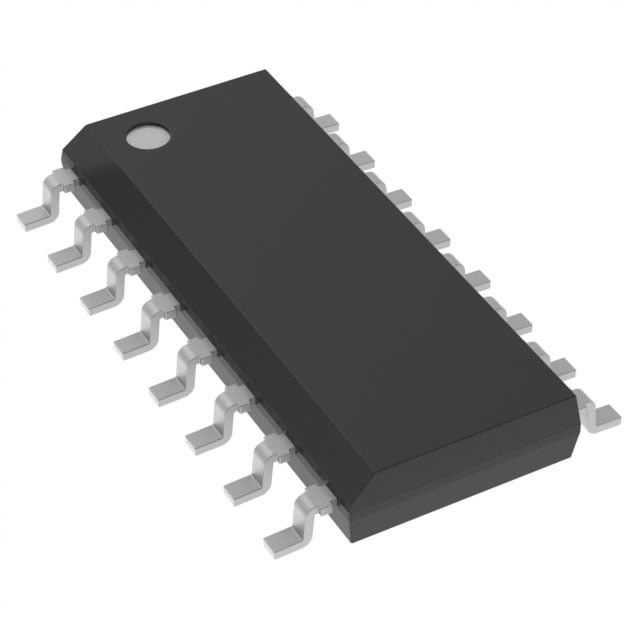

VNH7070ASTR ST Motor Driver | 16-SO | 40V, 7A, PWM Control

Product Overview

The VNH7070ASTR is a fully integrated H-bridge motor driver from STMicroelectronics, designed for automotive and industrial applications. It features a single monolithic device with a power MOSFET bridge and a control logic interface, capable of driving DC motors up to 7A continuous current and 40V supply voltage. The device is housed in a compact 16-SO package, offering high reliability and thermal performance.

Detailed Technical Specifications

Key Features

• Fully integrated H-bridge with MOSFETs and control logic
• Low RDS(on) for high efficiency
• PWM control up to 20 kHz
• Diagnostic functions (FAULT pin)
• Protection against overcurrent, overtemperature, and undervoltage
• Cross-conduction protection
• Automotive-grade (AEC-Q100 qualified)

Target Applications

• Automotive: DC motor control for window lifts, seat adjusters, sunroofs, and HVAC actuators
• Industrial: Robotics, conveyor belts, and automated gates
• Consumer: Power tools, garden equipment, and home appliances
• Specific examples: 5G base station antenna tilt control, automotive dashboard motor drives, and smart lock actuators
